HHBB Type Electric Chain Hoist

HHBB Type Electric Chain Hoist

HHBB type electric chain hoist is a small-sized lifting equipment, which has compact structure, light weight, small volume, parts versatility, convenient operation and other advantages. It is consists of motor, drive machenism and chain wheel. And it can be widely used in material handling, equipment installtion, mining, engineering construction and so on.

Producct details:

1. Minimum capacity: 0.5T: maximum capacity: 5T

2. Standard lift height: 3m

3. Power supply: 380V/50HZ

4. Insulation grade: F

5. Usage: lifting, fixing, binding, traction and so on.

6. The main parts of it adopt high quality steel product to ensure durability.

7. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	0.5	1	1.5	2	2.5	3	5
Lifting speed(m/min)	7.2	6.8	8.8	6.6	5.6	4.4	2.8
Motor power(kw)	1.1	1.5	3	3	3	3	3
Load chain(mm)	6.3	7.1	10	10	11.2	11.2	11.2
Net weight(kg)	47	65	108	108	115	131	145
A(mm)	460	520	615	615	615	615	615
B(mm)	230	260	295	295	295	295	295
D(mm)	288	300	430	430	430	430	430
E(mm)	165	176	265	265	265	320	325
H(mm)	635	650	770	815	830	930	1015

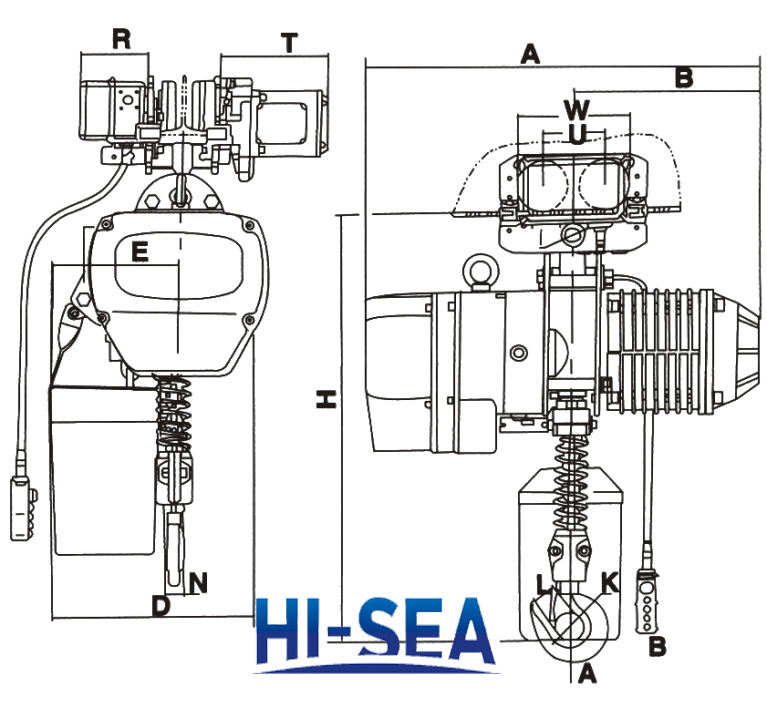

Sketch of the HHBB type electric chain block
