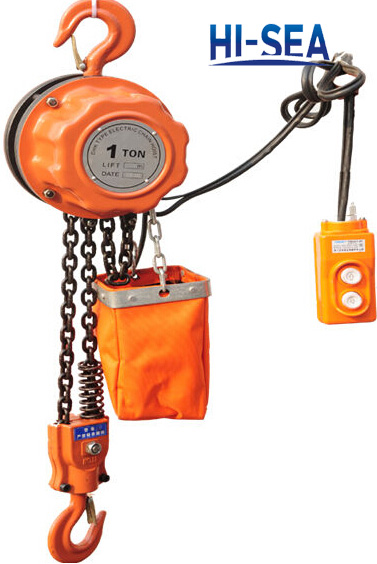

High Speed Electric Chain Block

High Speed Electric Chain Block

High speed electric chain hoist has the advantges of compact structure, small volume, light weight, high efficient and simple maintenance. Electric hoist is suitable for material handling, equipment installtion, mining, engineering construction and so on. So it could be widely used in factories, mines, electric power, construction site, dock and warehouse to install machine, lifting goods, load and unload vehicles.

Producct details:

1. Minimum capacity: 1T: maximum capacity: 10T

2. Standard lift height: 3m

3. Power supply: 380V/50HZ

4. Usage: lifting, fixing, binding, traction and so on.

5. The main parts of it adopt high quality steel product to ensure durability.

6. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	1	2	3	5	10
Test load(T)	1.25	2.5	4	6.25	12.5
Motor power(kw)	0.5	0.8	0.8	1.1	1.8
Lifting speed(m/min)	3	3	3	2	1
Min.distance of hooks(mm)	300	380	470	470	730
Standard lift(m)	3	3	3	3	3
Net weight(kg)	42	50	55	68	120

High Speed Electric Chain Hoist
