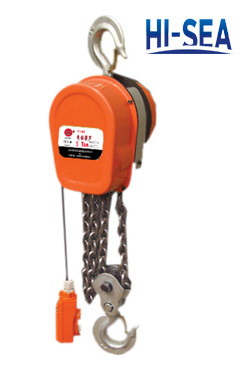

DHS Series Electric Chain Hoist

DHS Series Electric Chain Hoist

DHS series electric chain hoist is a kind of new small lifting equipment, which can be effectively used to lift, transport, load and unload. It can be widely used in various industries of processing workshops, warehouses, docks, construction sites, all kind of shops and moderized production line. The cover of it is made by high quality alloy steel, which make it light and solid. With the perfect sealing design, it can work in poor condition environment.

Producct details:

1. Minimum capacity: 1T: maximum capacity: 10T

2. Standard lift height: 3-9m

3. Power supply:380V

4. Insulation grade: F

5. Usage: lifting, fixing, binding, traction and so on.

6. The main parts of it adopt high quality steel product to ensure durability.

7. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	1	2	3	5	10
Lifting speed(m/min)	2.25	1.85	1.1	0.9	0.45
Lifting height(m)	3-9	3-9	3-6	3-6	6-9
Motor power(kw)	0.5	0.75	0.5	0.75	0.75
Rotate speed(r/min)	1380	1380	1380	1380	1380
Weight(kg)	36	45	42	57	115

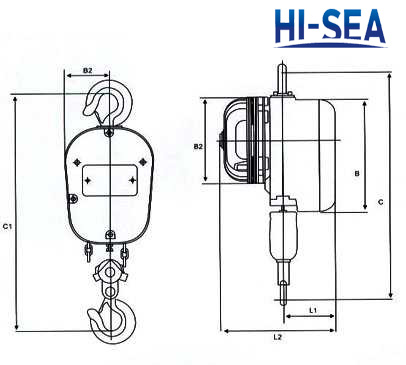

Sketch of the DHS series electric chain hoist
