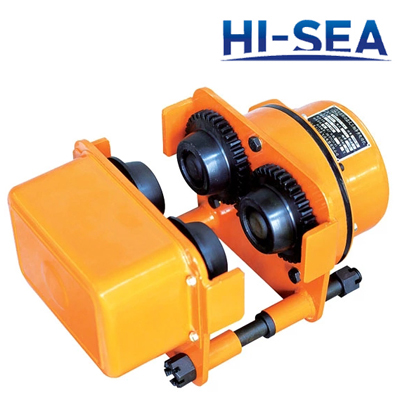

Monorail Motorized Trolley
Monorail motorized trolley work on the edge of I-steel track. Matching with electric hoist or chain block, it can be composed of bridge crane, single beam crane or cantilever crane. It is widely used in factories, mines, docks, warehouses, machinery processing, constraction site to install machinery, equipment and lifting goods.
Product Details:
1. Model: Monorail motorized trolley
2. Power source: Electric
3. Usage: Hoist
4. Lifting speed: 11-21m/min
5. Capacity: 0.5-10ton
6. I-beam: 52-220mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Item |
Capacity |
Lifting Speed |
Motor |
I-beam |
A |
B |
R |
T |
ton |
m/min |
Kw |
mm |
mm |
mm |
mm |
mm |
|
HS-0.5 |
0.5 |
12.2 |
0.12 |
52-153 |
196 |
248 |
142 |
159 |
HS-01 |
1 |
11/21 |
0.4 |
52-153 |
315 |
212 |
142 |
231 |
HS-02 |
2 |
11/21 |
0.4 |
82-178 |
325 |
220 |
142 |
231 |
HS-03 |
3 |
11/21 |
0.75 |
100-178 |
340 |
250 |
142 |
231 |
HS-05 |
5 |
11/21 |
0.75 |
100-178 |
400 |
291 |
142 |
231 |
HS-7.5 |
7.5 |
11/21 |
0.75 |
100-178 |
400 |
291 |
142 |
231 |
HS-10 |
10 |
11/21 |
0.75 |
150-220 |
500 |
370 |
142 |
231 |

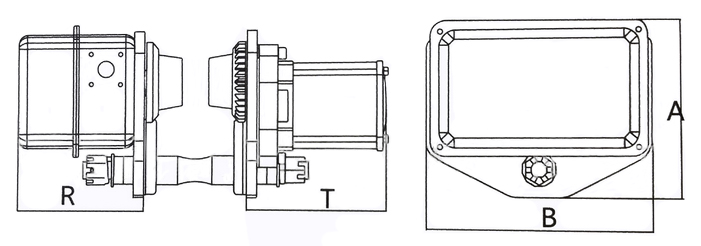

Sketch of monorail motorized trolley
Motorized Trolley
