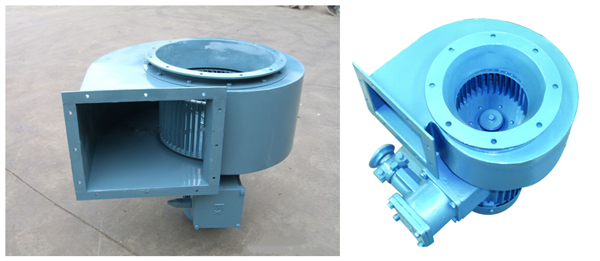

CBL Marine Explosion-proof Centrifugal Fan

General :

CBL Explosion-proof Marine fan are designed and manufactured according to GB11799-89 Marine explosion-proof axial flow fans GB3836.1-2000 Electrical apparatus for explosive atmosphere , GB3836.2-2000 Electrical apparatus for explosive atmospheres, and explosion-proof electrical equipment“d” .Explosion-proof centrifugal ventilator fan have been examined and proved up to standard by the Explosion-proof Inspection Authority of the PRC and have got the certificate of inspection. They have also been examined by the register of shipping of RC and have got the certificate.

Features :

CBL Explosion-proof Marine fan Explosion-proof, safe and reliable in operation. Small size, light weight, and low noise, well anticorrosive , strongly capable of resisting swing, vibration and shocking.

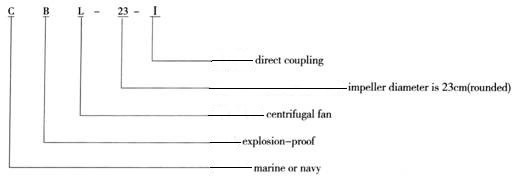

Model Explanation :

CBL Marine Explosion-proof Centrifugal Fan

Performance Parameter :

Model	Volume m3/h	Total pressure pa	Static pressure pa	Motor power
Model	Volume m3/h	Total pressure pa	Static pressure pa	I	II
CBL-15	500-960	540-780	390-560	0.75	1.5
CBL-16	800-1400	590-860	340-705	0.75	1.5
CBL-17	800-1400	685-1000	440-840	0.75	1.5
CBL-18	1200-1800	810-1165	540-920	1.1	1.5
CBL-19	1500-2400	880-1295	590-1060	1.5	1.5
CBL-20	800-2400	245-1510	195-1265	0.75-2.2	1.1-3
CBL-21	2000-3000	1165-1686	785-1330	2.2	3
CBL-22	2500-3600	830-1410	830-1410	2.2-3	4
CBL-23	2500-3600	1080-1685	1080-1685	2.2-4	4
CBL-24	1500-4800	1460-3500	250-1970	0.75-5.5	1.1-5.5
CBL-25	2000-4800	430-2745	295-2255	1.1-7.5	1.1-7.5
CBL-27	2500-3600	510-735	340-560	1.5	1.5
CBL-29	2500-3600	570-900	440-775	1.5-2.2	1.5-2.2
CBL-30	3000-4800	635-910	440-775	1.5-2.2	2.2
CBL-32	4000-6000	735-1070	490-843	2.2-3	3
CBL-33	4000-6000	795-1185	590-990	2.2-3	3
CBL-34	5000-7200	840-1235	590-990	3-4	4
CBL-36	5000-8600	870-1390	735-1195	4-5.5	4-5.5
CBL-37	6000-8600	990-1450	340-1410	4-5.5	4-5.5
CBL-39	6000-10800	490-1705	785-1410	2.2-7.5	2.2-7.5
CBL-40	5000-7200	1175-1745	980-1550	4-7.5	4-7.5
CBL-42	6000-14000	540-840	390-705	2.2-11	3-11
CBL-44	7200-14000	600-2130	390-1275	3-15	4-15
CBL-46	9000-18000	675-970	340-1830	4-18.5	4-18.5
CBL-48	9000-18000	655-1060	390-2118	4-22	4-22
CBL-50	12000-21000	775-2635	540-2120	5.5-22	5.5-22
CBL-52	12000-18000	850-1330	540-1059	7.5-11	7.5-11
CBL-54	15000-18000	940-1350	685-990	7.5-11	7.5-11
CBL-56	15000-21000	1010-1520	685-1195	11-15	11-15
CBL-58	18000-21000	1155-1655	880-1265	15-18.5	15-18.5

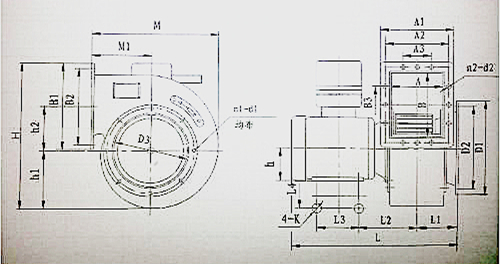

Structure :

CBL Marine Explosion-proof Centrifugal Fan

There are two structural types:

type I (direct-coupling type), and type II (separate cabins type). The construction is non-sparking.

The structure of types I is a motor direct coupling one, the impeller is mounted directly on the motor shat , and the casing is fixed on the flange of the explosion-proof motor.

The type II is a separate structure ,the fan and the motor are put into different cabins, with a driving device, flexible couplings, and the driving device consists of bearings, bearing-box, shaft, brass rings, stuffing box. It can be oiled and measured the temperature .

The fan may be made into a horizontal or vertical , single-stage, single-drawing and airtight structure by the customer’5 requirements.
