SJG Oblique Flow Pipe Exhaust Fan

Applications :

SJG Oblique Flow Pipe Exhaust Fan is widely used in industrial and ming enterprise,hotels,restautants,museums,sports and other high-rise building ventilation places.

Advantages :

No comparisionin the same plane,the flow is greater than centrifugal fan:total pressure higher than the axial fans,smaller than a centrifugal fan,with efficient operation of district wide,low noise,small footprint,easy installation etc.The fan does not affect the piping layout and piping to best suited to real pressure and supply and exhaust pipes.Small room for the space,in particular, shows the superiority of its compact structure.SJG series products are widely used in industrial and mining enterprise,hotels,restaurants,museum,sports and other high-rise building ventilation places.

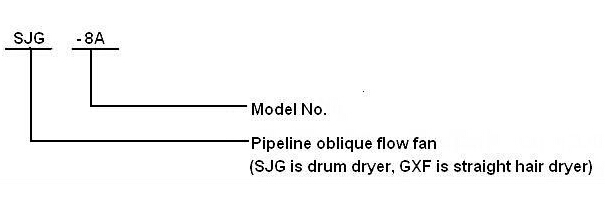

Model Explanation :

SJG Oblique Flow Pipe Exhaust Fan

Performance Parameter :

Model	Speed	Air Flow	Pressure	Input Power	Kg
Model	RPM	m3/h	Pa	kW	Kg
3.0F	1450	500-2000	260-130	0.25	27
3.0F	2900	980-3860	1000-500	1.1	46
3.5F	960	800-2500	140-50	0.18	42
3.5F	1450	1000-4000	320-110	0.37	45
3.5F	2900	1900-7880	1100-430	2.2	65
4.0F	960	1000-4000	190-51	0.25	61
4.0F	1450	1500-5000	420-220	0.75	67
4.5S	960	1500-5000	360-100	0.37	70
4.5F	1450	2000-7000	580-250	1.1	80
5.0S	960	1500-6000	360-150	0.75	90
5.0F	1450	2000-10000	710-345	2.2	110
6.0S	960	3000-11000	480-240	1.5	150
6.0F	1450	4000-18000	1200-380	5.5	165

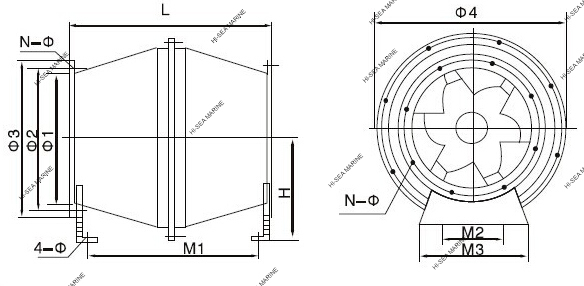

Structure :

SJG Oblique Flow Pipe Exhaust Fan

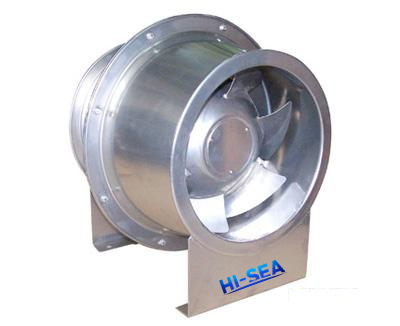

Photo :

SJG Oblique Flow Pipe Exhaust Fan
