CF-11 Marine External Rotor Centrifugal Fan

Application :

Model CF can be used for the indoor ventilation,canteens,hotels,restaurants,eateries,and other public CF series of high temperature low noise multi-wing centrifugal ventilator places in the kitchen ventilation,fume extraction or ventilation purpose and suitable for days of food machinery,chemincal machinery,plastics machinery and other production devices.

Advantage :

CF-type low-noise multi-wing centrifauga fa ventilator is growing to meet the purification of industrial and environmental noise,the efficiency of the aerodynamic parameters:such as multi-objective optimization method to achieve the best performance of whole match.Good aerodynamic performance and impeller are more stringent balancing.

Performance Parameter :

Model	Speed RPM	Power kw	Air Flow m3/h	Pressure Pa	Voltage V	Noise dB(A)
1.5A	2800	0.37	700~800	912~720	220/380	72
2A	2800	1.1	1900~2500	1200~9591	220/380	74
2A	1450	0.25	950~1250	410~294	220/380	67
2.5A	1450	0.75	1950~2850	490~390	220/380	68
3A	1450	1.5	3500~5000	620~500	220/380	70
3.5A	1450	3	4995~6640	1199~998	380	70
3.5A	1450	2.2	4500~6200	1000~900	380	70
4A	1450	4	4600~11000	593~474	380	70
4.5A	960	3	8380~9900	740~600	380	71
5A	960	4	10662~12240	880~716	380	74

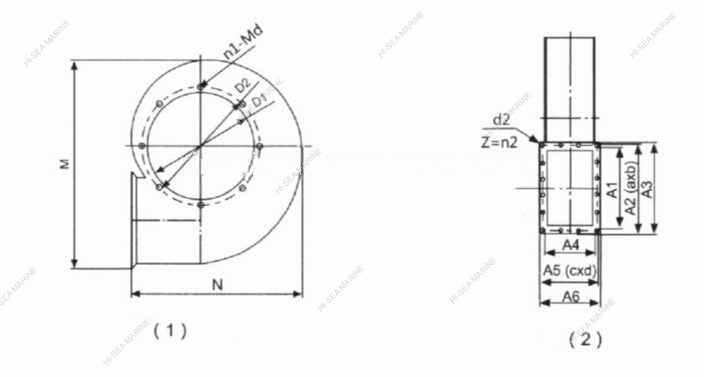

Structure :

CF-11 Marine External Rotor Centrifugal Fan

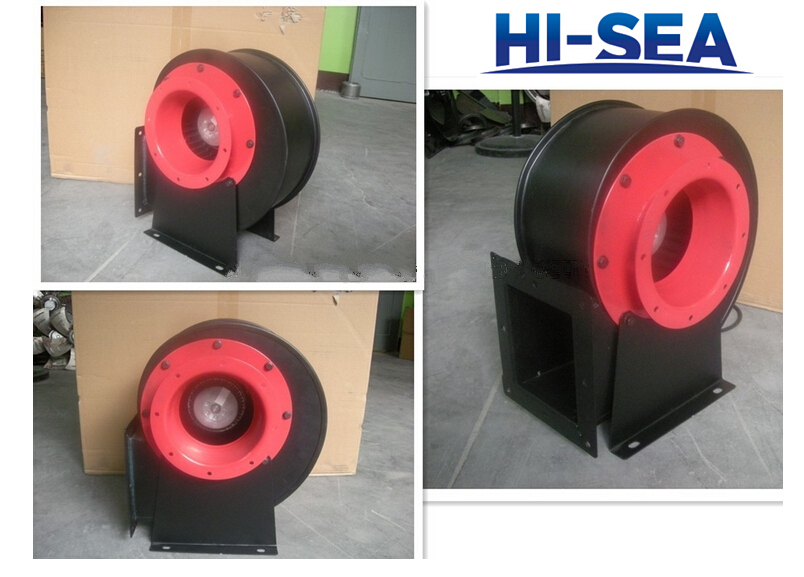

Photo :

CF-11 Marine External Rotor Centrifugal Fan
