GDF(DXG) Rectangular Duct Centrifugal Fan


Applications :


GDF series centrifugal fan is widely used for ventilation in enterprises, civil buildings, hotels, stores, hospitals, theaters, halls, colleges and research institutes.


Features :



1) Made of stainless steel plate or professionally moulded steel plate, which is galvanization coated, the casing has a firm and compact structure.

2) GDF fan with low noise fan motor direct linkage with centrifugal impeller, square import and export of the wind, can directly supply, and duct wind axis installation without room, compact structure, low height, have the advantage both from pipe fan of high flow and low noise of box fan.

3) With low-noise, power saving, easy installation, stable operation, etc

4) Widely used in hotel, hospital, gym, library which the places need low noise for sending and exhausting wind.



Working Condition :


Environmental temperature range-----20¡ãC~80 ¡ãc

Particles contain in the air shall not exceed 120mg/m3

The air transferred shall not contain any toxic, corrosive and adhesive materials


Performance Parameter :


DXG-¢ñ(Backward Plate)

Model

Power(kW)

Speed(rpm)

Air Flow(m3/h)

Noise
dB(A)

Weight
(Kg)

3¡Ó380V

1¡Ó220V

100Pa

200Pa

300Pa

400Pa

500Pa

600Pa

700Pa

3.2

0.18

0.25

1380

1080

800

200

47

34

3.6

0.37

0.37

1380

3000

2200

1200

54

70

4

0.55

0.55

1380

3600

3000

2100

1000

61

78

4.5

0.8

0.75

1380

4900

4000

3100

2100

800

59

96

5

1.8

1.8

1400

9400

8300

7600

6500

5400

4000

2200

65

132

5.6

3

3

1400

12600

11600

10500

9400

8000

6500

4500

68

190



DXG-II (Forward Multiple Wings)

Model

Air Flow(m3/h)

Wind Pressure (Pa)

Speed(rpm)

Power(kW)

NoisedB(A)

Weight(Kg)

2.5

550

110

700

0.12

46

22

710

142

900

0.18

48

28

1100

352

1400

0.25

49

32

3

1000

138

700

0.12

52

27

1400

205

900

0.18

58

32

2100

510

1400

0.55

67

37

3.5

1370

118

550

0.25

54

44

1710

182

680

0.25

59

44

2270

324

910

0.55

64

49

4

2360

170

550

0.25

56

51

3000

250

690

0.37

61

52

4060

450

920

0.75

66

59

4.5

3480

221

550

0.37

61

62

4500

340

690

0.75

65

73

6280

586

920

2.2

72

80

5

4800

276

550

0.75

63

78

6100

400

690

1.5

66

86

7200

720

920

3.0

74

95

5.5

6100

280

550

1.1

68

97

7700

453

700

2.2

72

100

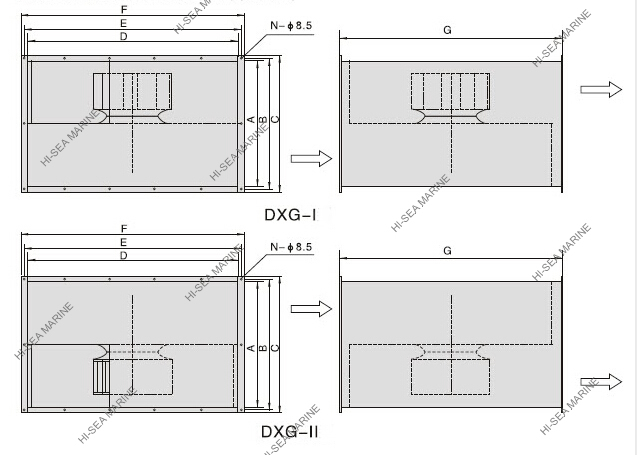

Structure :


GDF(DXG) Rectangular Duct Centrifugal Fan

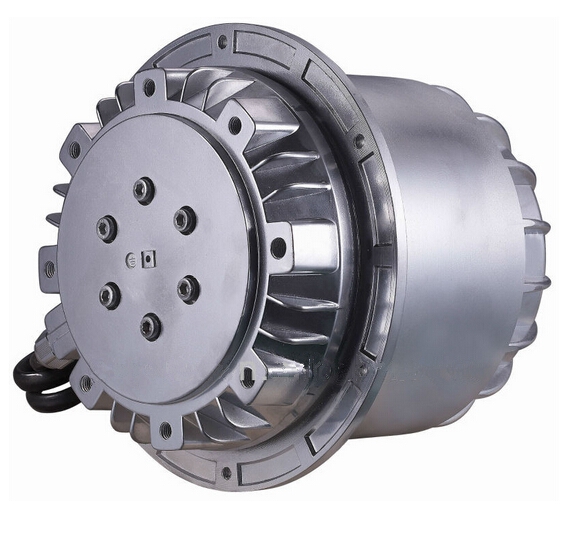

Photo :
