CLZ Marine High-pressure Axial Flow Fan

[Search Related Products]

CLZ Marine High-pressure Axial Flow Fan


Application


CLZ marine axial fan is designed primarily for ventilation of cabins, air supply or air exhaust. The delivered air can contain the salt fog or acid vapor from the battery. The temperature of the air can not exceed 50 centigrade degree.


Performance Parameter


No Type Form Capacity (m3/h) Total Pressure (Pa) Speed (r/min) shaft power(kw) Motor weight (kgs)
Type kw
1 CLZ1-Z/CLZ1-J 1600 200 2900 0.142 ZZT2/30-H 0.2 45
AsH102T2P 0.25 26
2 CLZ2-Z/CLZ2-J 1600 350 2900 0.219 ZZT4/30-H 0.4 52
A3H-6322T2 0.55 32
3 CLZ3-Z/CLZ3-J 2500 300 2900 0.292 ZZT4/30-H 0.4 58
A3H-6322T2 0.55 37
4 CLZ4-Z/CLZ4-J 2500 500 2900 0.512 ZZT8/30-H 0.8 78
Y80L1-2-H 0.75 51
5 CLZ5-Z/CLZ5-J 4000 400 2900 0.63 ZZT8/30-H 0.8 83
Y80L1-2-H 0.75 53
6 CLZ6-Z/CLZ6-J 4000 700 2900 1.12 ZZT15/30-H 1.5 144
Y90S-2-H 1.5 77
7 CLZ7-Z/CLZ7-J 6000 750 2900 1.53 ZZT22/30-H 2.2 88
Y90L-2-H 2.2 84
8 CLZ8-Z/CLZ8-J 9000 800 2900 2.6 ZZT30/15-H 3 182
Y100L-2-H 3 109
9 CLZ9-Z/CLZ9-J 12000 500 1450 2.1 ZZT30/15-H 3 312
Y100L2-4-H 3 170
10 CLZ10-Z/CLZ10-J 12000 900 1450 3.8 ZZT55/15-H 5.5 474
Y132S-4-H 5.5 318
11 CLZ11-Z/CLZ11-J 16000 500 1450 3.3 ZZT40/15-H 4 358
Y112M-4-H 4 190
12 CLZ12-Z/CLZ12-J 16000 1100 1450 6 ZZT75/15-H 7.5 524
Y132M-4-H 7.5 348
13 CLZ13-Z/CLZ13-J 25000 600 1450 5.2 ZZT75/15-H 7.5 384
Y132M-4-H 7.5 244
14 CLZ14-Z/CLZ14-J 25000 1100 1450 10.2 ZZT130/15-H 13 700
Y160L-4-H 15 459

Structure

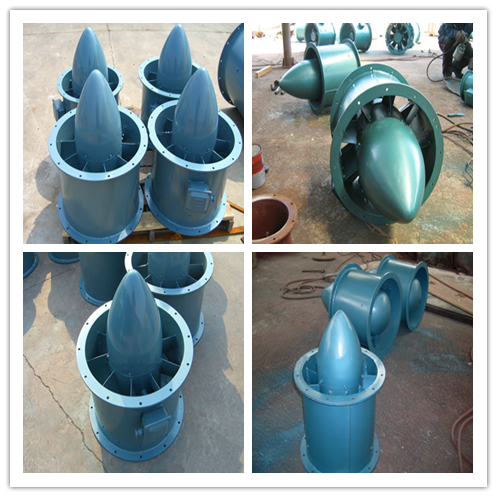

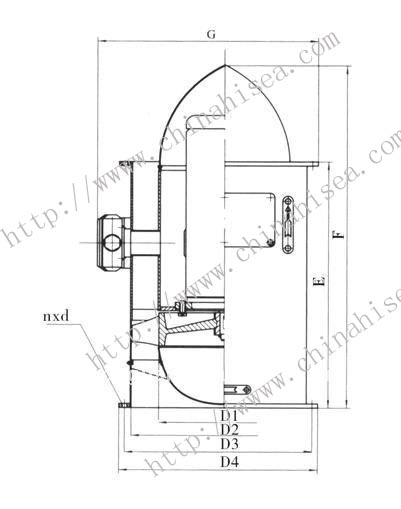

CLZ Marine High-pressure Axial Flow Fan


CLZ marine axial fan consists of the impeller, casing, motor, guide cowl, rectifier, etc.

1. Casing is made of steel plate with enough thickness, composed of an inner cylinder, a shell and a down-stream guide vane. The shell is with flanges on the inlet and outlet to connect with the ducts. The inner cylinder and the shell are connected with the down-stream guide vane that is used to guide the air flow.

2.Motor is the special motor manufactured by the professional motor factory. It is totally enclosed, naturally cooled and capable of resisting the salty fog, shocking and vibration. The motor is installed inside of the inner cylinder, the electric motor type are ZZT-H marine electric motor (220V) or Y-H marine electric motor (220V/380V)

3.Impeller is made of anticorrosive casting aluminum alloy,being carefully balanced and mounted directly on the motor shaft extension.

4.The guide cowl is installed on the inlet side, the rectifier is installed on the outlet side. So that the air flow vortex is reduced ,and the fan efficiency is increased. The material of GRP.

5.The fan is painted by primer painting and the marine painting.
