CWL(CXL) Small-size Marine Centrifugal Fan

Applications :

CWL（CXL）series marine small-size centrifugal fans is capable of blowing air, ocean air containing salt vapour, and corrosive air which contains oil vapour.

It can be used for ventilation of kitchen, toilet, wardrobe, meeting room and each cabin, as well as other suitable place land chemical industry and metallurgy.

This series fans with Explosion-proof motors can delivered gas mixtures or vapour containing combustibles and explosives, it can run normally at danger field.

CWL（CXL）series fans fit with Marine three-phase tiny asynchronous motors. Its power can be 380/220V and 50/60Hz.(For some specific fans with YB series motor, its power can’t be 220V).

Standard :

2.1. Conformed to the prescription of GB11799-89 MARINE EXPLOSION-PROOF FAN TESTING, TECHNIC DEMAND, CHECK AND ACCEPT.

2.2. Conformed to the prescription of THE MARINE USE DEMAND OF CHINA SHIP INSPECT OFFICE STEEL SHIP ENTRANCE DEGREE AND BUILD STANDARD.

2.3.Conformed to the prescription of THE WARSHIP USE DEMAND of THE CPLA SHIP BUILD STANDARD.

Features :

3.1. High parameter of pressure (H>1.4), high parameter of capacities (Q>0.5), high efficiency (η>65).

3.2. Light in weight, small in size, reliable in operation, low noise.

3.3. Performance parameter is various and application field is wide.

3.4. High strength, good anticorrosion.

3.5. Strong resistance against swing, vibration and impact.

Working Condition :

Ambient temperature : -25～+55℃

Max relative humidity : 95%

Periodical swing : 45°

Sustained horizontal swing: ±15°

Sustained vertical swing : ±10°

Vibration : existent

Shock : existent

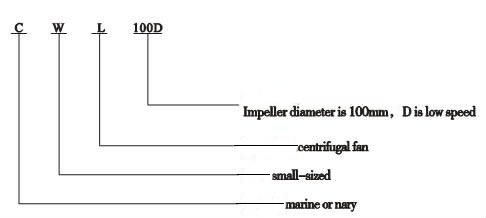

Model Explanation :

Performance Parameter :

Type	Capacity m3/h	Total Pressure Pa	Static pressure Pa	Speed r/min	SOund pressoue level dB(A)	Motor
						Freq Hz	Power KW	Type
CWL-100D	110 135	90 133	67 99	1400 1700	52 55	50 60	0.06 0.06	AO2-5614-H
CWL-100G	220 270	360 532	268 396	2800 3400	63 67	50 60	0.09 0.09	AO2-5612-H
CWL-110D	150 185	110 162	80 118	1400 1700	54 58	50 60	0.06 0.06	AO2-5614-H
CWL-110G	300 370	440 648	320 472	2800 3400	65 69	50 60	0.12 0.12	AO2-5622-H
CWL-125D	220 270	140 206	102 150	1400 1700	57 61	50 60	0.06 0.06	AO2-5614-H
CWL-125G	440 540	560 824	408 600	2800 3400	69.5 72	50 60	0.18 0.18	AO2-6312-H
CWL-140D	300 365	180 265	135 199	1400 1700	60 64	50 60	0.06 0.06	AO2-5614-H
CWL-140G	600 730	720 1060	540 796	2800 3400	71.5 76	50 60	0.25 0.37	AO2-6322-H AO2-7122-H
CWL-160D	450 550	230 339	170 251	1400 1700	64 68	50 60	0.12 0.12	AO2-6314-H
CWL-160G	900 1100	920 1356	680 1004	2800 3400	75 79	50 60	0.37 0.75	AO2-7112-H Y-8012-H
CWL-180D	640 780	290 428	217 320	1400 1700	67 71	50 60	0.37 0.37	AO2-7124-H
CWL-180G	1280 1600	1160 1812	868 1356	2800 3500	78 82.5	50 60	0.75 1.50	Y-8012-H Y90S-2-H
CWL-200D	900 1080	375 553	276 407	1400 1700	70 74	50 60	0.55 0.55	Y8014-H
CWL-200G	1880 2250	1631 2343	1201 1725	2920 3500	82 85	50 60	1.50 2.20	Y90S-2-H Y90L-2-H

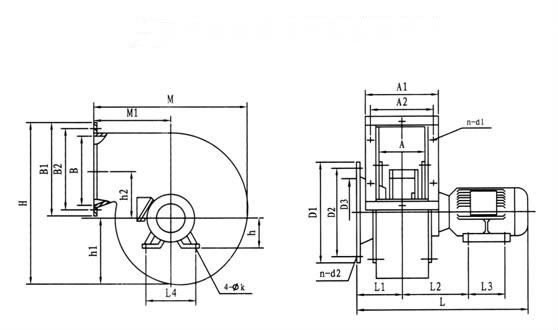

Structure :

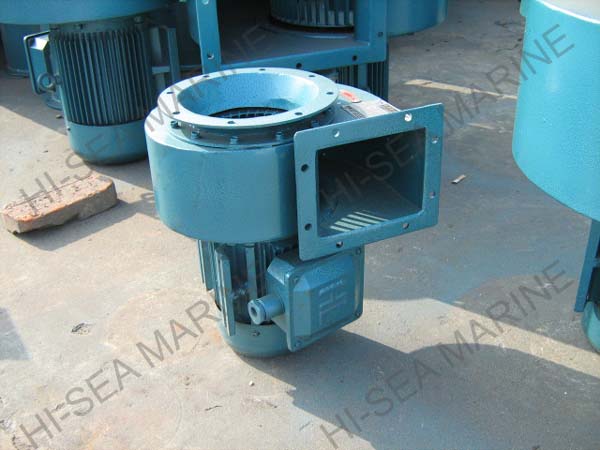

Photo :
