Flange Gate Valve

[Search Related Products]

Flange Gate Valve

Flange gate valve:

1.Design standard:GB, JIS, ANSI, etc.

2.End standard:GB, JIS, ANSI, etc.

3.End type:Flange.

4.PN:1.0¡ª10.0Mpa.

5.DN:15mm-600mm.

6.Main material:

  • Body donnet£ºCast iron/steel;
  • Wedge gate:Alloy steel£«corbiddealloy;
  • Stem:Alloy steel.

7.Application:Fresh water,sea water,fuel oil and lubricating oil piping under 200¡æ.

8.Function:Such valves are used for on-off duty.

9.Fundamental dimensions of Flanged Gate Valve :

DN/mm

Dimensions/mm

L

D

D1

D2

H

b-f

n-¦Õd

D0

15

130

95

65

45

170

16-2

4-14

40

20

150

105

75

55

190

16-2

4-14

51

25

160

115

85

65

205

16-2

4-14

58

32

180

135

100

78

270

18-2

4-18

66

40

200

145

110

85

310

18-3

4-18

76

50

230

160

125

100

371

20-3

4-18

88

65

290

180

145

120

391

22-3

8-18

110

80

310

195

160

135

455

22-3

8-18

121

100

350

230

190

160

551

24-3

8-23

150

125

400

270

220

188

628

28-3

8-25

178

150

450

300

250

218

708

30-3

8-25

204

200

550

375

320

282

885

38-3

12-25

260

250

650

445

385

345

960

42-3

12-30

313

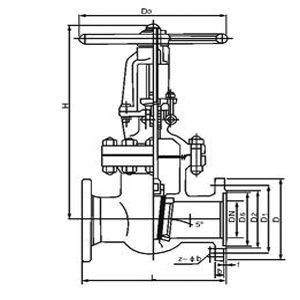

10.Drawing of flange gate valve

Flange Gate Valve
