G80 Eye Self-locking Hook
G80 eye self-locking hook only can be opened by outside force. So it is also been called safety hooks. And eye hooks are foolproof. They can used with omega links, connecting links and other lifting components. Besides, they can serve in many circumstances. As the increasing cognition by broad new client, the use of hooks is not only confined to the ship. It has been widely applied to chemical industry, oil drilling, coal handing and other projects.Product details:
1. Item: G80 eye self-locking hook
2. Type: European type
3. Grade: 80
4. Material: high alloy steel or carbon steel
5. Technology: drop forged
6. Surface: hot dip galvanized, zinc plated or self color
7. WLL: 1.12T-31.5T
8. Breaking load: 4 times of working load
9. Usage: lifting, rigging
10. Size: 6mm-32mm
11.Special specifications and marks can be made according to customers requirement
Specification£º
Chain Size |
WLL |
B.L |
Weight |
¦µ1 |
¦µ2 |
D |
E |
H |
R |
mm |
ton |
ton |
kg |
mm |
mm |
mm |
mm |
mm |
mm |
6 |
1.12 |
4.48 |
0.5 |
22 |
34 |
10 |
28 |
19.5 |
110.5 |
7-8 |
2 |
8 |
0.8 |
25 |
46 |
12 |
34 |
24 |
136 |
10 |
3.15 |
12.6 |
1.55 |
32 |
56 |
15 |
44 |
28.5 |
171 |
13 |
5.3 |
21.2 |
3.2 |
40.5 |
69 |
19.5 |
52 |
40 |
208.5 |
16 |
8 |
32 |
5.74 |
56 |
86 |
22 |
60 |
50.5 |
257.5 |
20 |
12.5 |
50 |
8.5 |
64.5 |
100 |
27 |
81 |
55 |
275 |
22 |
15 |
60 |
13 |
70 |
98 |
30 |
82 |
67 |
320 |
26 |
21.2 |
84.8 |
18 |
80 |
110 |
34 |
110 |
75 |
363 |
32 |
31.5 |
126 |
44.5 |
105 |
166 |
45 |
168 |
97 |
472 |

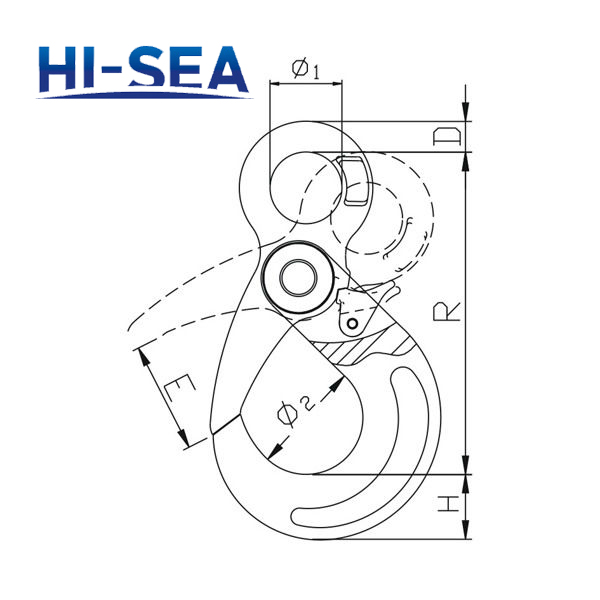

Sketch of the G80 eye self locking hook
G80 eye self locking hook
