U.S Type Eye Slip Hook
US type eye slip hook is designed to use with G80 alloy chain and steel wire rope. It can be applied to shorten or hook long chain. It is drop forged by high quality carbon steel and alloy steel with hot dip galvanizing on the surface. The work load of it is form 2750lbs to 19250lbs. And the size of it is from1/4 inch to 3/4 inch.Product details:
Item: US type eye slip hook
Type: US type
Grade: 80
Material: high alloy steel
Technology: drop forged
Surface: hot dip galvanized, zinc plated or self color
WLL: 2750lbs-19250lbs
Breaking load: 4 times of working load
Usage: lifting, rigging
Size: 1/4¡±-3/4¡±
Special specifications and marks can be made according to customers requirement
Specification£º
Size |
N.W(lbs) |
WLL(lbs) |
¦µ¡¡ |
R |
L |
M |
E |
1/4' |
0.4 |
2750 |
12.7 |
65 |
92 |
68.5 |
23 |
5/16' |
0.7 |
4300 |
16 |
72.5 |
106 |
76 |
26 |
3/8' |
1 |
5250 |
18 |
86.5 |
124 |
89.5 |
33 |
7/16' |
1.6 |
7000 |
20.5 |
98.5 |
142 |
108 |
40 |
1/2' |
2.4 |
9000 |
23 |
109.5 |
156 |
116.5 |
43 |
5/8' |
4 |
13500 |
28.8 |
132.5 |
195 |
143 |
52 |
3/4' |
6.5 |
19250 |
35 |
147.5 |
222 |
169 |
55 |
Sketch of the eye slip hook

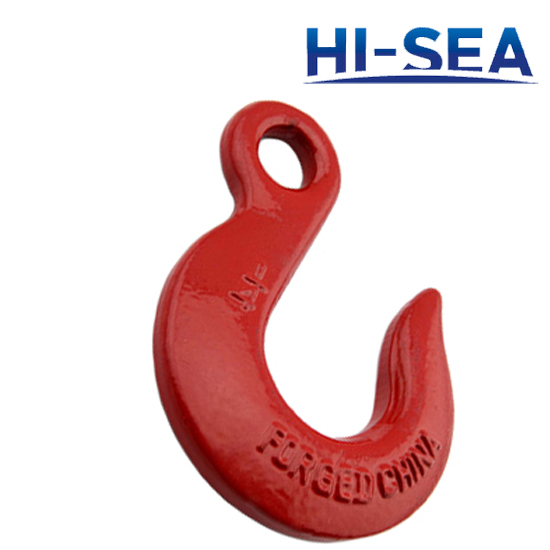

US type eye slip hook
