G80 High Tensile Hook
G80 high tensile hooks is made by high quality alloy steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products. Besides that, Special specification and marks can be made according to customers requirement.Product details:
1. Item: G80 high tensile hook
2. Type: US type
3. Grade: 80
4. Material: alloy steel
6.Technology: drop forged
7. Surface: hot dip galvanized, zinc plated or self color
8. WLL: 2.5T-5.4T
9. Breaking load: 4 times of working load
10. Usage: lifting, rigging
11. Size: 0.5kg-1.38kg
12.Special specifications and marks can be made according to customers requirement
Specification£º
Size |
Weight/kg |
WLL/T |
B.L/T |
L |
A |
B |
R |
9 |
0.5 |
2.5 |
10 |
143 |
13.5 |
90.5 |
18.5 |
11 |
0.85 |
3.75 |
15 |
177 |
15.5 |
109.5 |
22 |
13 |
1.38 |
5.4 |
21.6 |
205 |
17.7 |
129 |
25.5 |

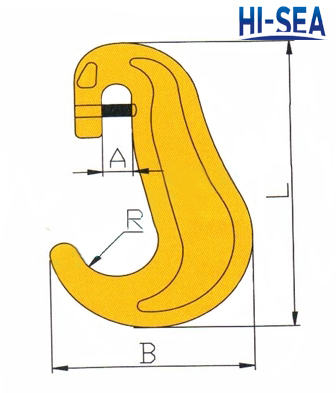

Sketch of the high tensile hook

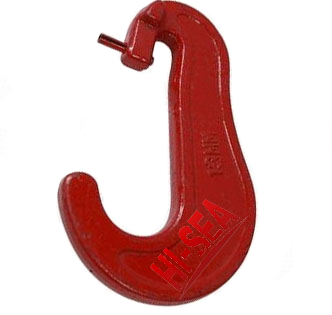

G80 high tensile hook
