Nose Shaped Hoisting Hook
[Search Related Products]

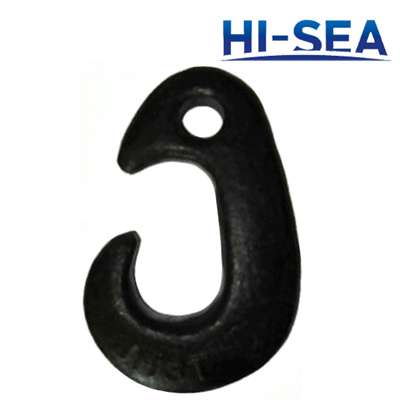

Nose Shaped Hoisting Hook
Nose shaped hoisting hook is drop forged from high quality low carbon alloy steel. It has advantages of high strength and high temperature resistance. We can provide it with sufficient supply, fast delivery time and complete specification.
Product Details:
1. Model: Nose shaped hoisting hook
2. Material: Alloy steel
3. Technology: Drop forged
4. Surface: Hot dip galvanized
5. Usage: Lifting Cargo
6. SWL: 1T-10T
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Code |
SWL |
A |
B |
C |
D |
E |
H |
ton |
mm |
mm |
mm |
mm |
mm |
mm |
|
HS-4301 |
1 |
17 |
20 |
25 |
32 |
16 |
80 |
HS-4302 |
2 |
24 |
24 |
32 |
42 |
18 |
90 |
HS-4303 |
3 |
31 |
28 |
40 |
56 |
22 |
102 |
HS-4304 |
5 |
38 |
38 |
62 |
70 |
33 |
140 |
HS-4305 |
8 |
46 |
46 |
70 |
80 |
38 |
168 |
HS-4306 |
10 |
50 |
50 |
80 |
90 |
42 |
188 |
Sketch of nose shaped hoisting Hook
Nose Shaped Hoisting Hook
