G80 Heavy Duty Lifting Swivel Hook

G80 Heavy Duty Lifting Swivel Hook

G80 heavy duty lifting swivel hook is also know as oilfield rotating hook, which is used with oilfield drilling machine. In the case of no-load, the self-loacking hook can rotate flexibly 360 degrees. Lubricating oil should be added before use to make sure the operation smooth。

Product Details：

1. Model:G80 heavy duty lifting swivel hook

2. Material: Carbon steel or alloy steel

3. Usage: Lifting hoist equipment

4. WLL: 1-10ton

5. Forbidden to use overload

6. Certificates: ISO, CE, SGS,etc.

7. The capacity of it we can provide is up to 200T.

8. Packaging: Gunny bag or carton then on steel pallet

9. Special specification and marks can be made according to order quantity

Specification：

WLL	A	B	Φ	C	D	E	F	L
T	mm	mm	mm	mm	mm	mm	mm	mm
1	26	42	15	67	80	31	99.3	275
2	37	56	19	78	100	35	121.5	360
3	38	69	25	88	111	40	139	415
5	50	88	31	108	122	48	165.5	490
8	65	112	34	128	200	60	210	640
10	71	117	42	147	220	66.3	237	740

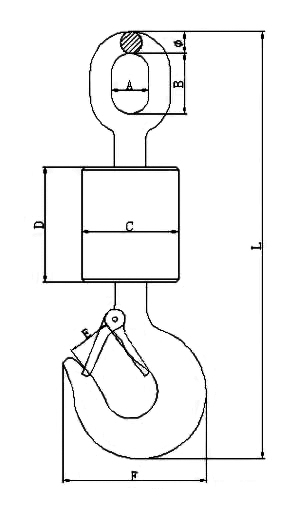

Sketch of G80 heavy duty lifting swivel hook

G80 Swivel Vertical Hook Eye and Eye Type
