Heavy Duty Crane Lifting Hook
Heavy duty crane lifting hook is connected with pulleys to hang on the wire rope of lifting machinery. It can be classified into single hook and double hooks according to the appearance, or foeged hooks and strapped hooks according to produced method. It is the most widely used tool when lifting cargos.
Product Details:
1. Model: Single hook crane hook block
2. Material: High quality carbon steel
3. Technology: Forged, strapped
4. Surface: Powder Coated
5. Rated load: 16T-250T
6. Usage: Lifting
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:

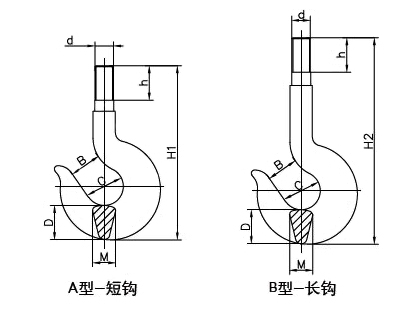

Sketch of Crane Single Lifting Hook
Type |
Capacity |
H1 |
h |
c |
B |
D |
M |
ton |
mm |
mm |
mm |
mm |
mm |
mm |
|
HS-S01 |
3.2T |
313 |
55 |
65 |
50 |
65 |
40 |
HS-S02 |
5T |
400 |
70 |
85 |
65 |
82 |
54 |
HS-S03 |
8T |
515 |
80 |
110 |
85 |
100 |
65 |
HS-S04 |
10T |
575 |
90 |
120 |
90 |
115 |
75 |
HS-S05 |
12.5T |
610 |
95 |
130 |
100 |
130 |
80 |
HS-S06 |
16T |
665 |
100 |
150 |
120 |
150 |
90 |
HS-S07 |
20T |
764 |
115 |
170 |
130 |
164 |
102 |
HS-S08 |
25T |
804 |
130 |
190 |
145 |
184 |
115 |
HS-S09 |
32T |
940 |
140 |
210 |
160 |
205 |
130 |
HS-S10 |
40T |
1020 |
150 |
240 |
180 |
240 |
150 |
HS-S11 |
50T |
1190 |
175 |
270 |
205 |
260 |
165 |
HS-S12 |
80T |
1490 |
205 |
320 |
250 |
320 |
200 |

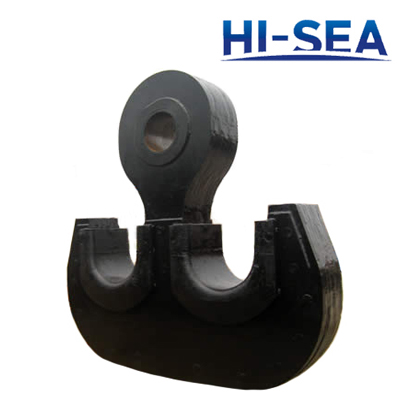

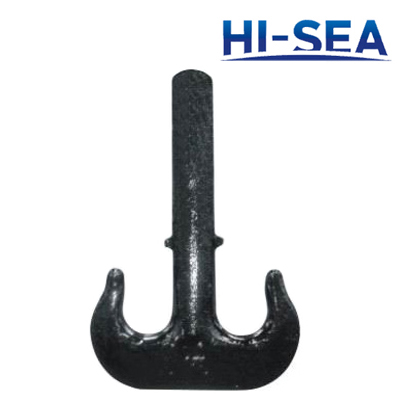

Sketch of Crane Double Lifting Hook
Type |
Capacity |
B |
D |
d |
d1 |
L |
Weight |
||
ton |
mm |
mm |
mm |
mm |
Amm |
Bmm |
Amm |
Bmm |
|
HS-D01 |
16T |
460 |
115 |
95 |
85 |
420 |
760 |
41 |
55 |
HS-D02 |
20T |
505 |
125 |
110 |
100 |
470 |
820 |
80 |
78 |
HS-D03 |
25T |
590 |
145 |
125 |
100 |
525 |
875 |
90 |
112 |
HS-D04 |
32T |
645 |
160 |
135 |
120 |
290 |
940 |
120 |
156 |
HS-D05 |
40T |
740 |
180 |
160 |
140 |
660 |
1000 |
159 |
200 |
HS-D06 |
50T |
810 |
200 |
170 |
150 |
725 |
1050 |
228 |
255 |
HS-D07 |
80T |
980 |
250 |
200 |
180 |
800 |
1176 |
400 |
472 |
HS-D08 |
100T |
1100 |
280 |
220 |
200 |
900 |
1200 |
580 |
620 |
HS-D09 |
125T |
1390 |
300 |
230 |
200 |
1200 |
-- |
1218 |
-- |
HS-D10 |
160T |
1490 |
350 |
240 |
220 |
1337 |
-- |
1600 |
-- |
HS-D11 |
200T |
1510 |
350 |
260 |
240 |
1450 |
-- |
2240 |
-- |
HS-D12 |
250T |
1680 |
400 |
280 |
260 |
1730 |
-- |
2980 |
-- |
