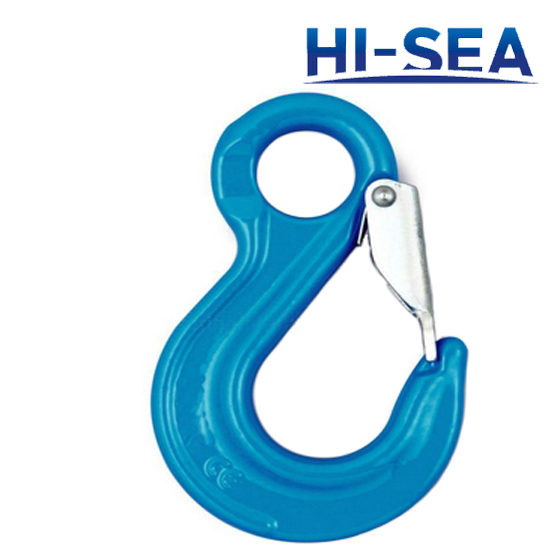

G80 Eye Sling Hook with Latch
[Search Related Products]
G80 Eye Sling Hook with Latch
G80 eye sling hook with latch is made by high quality carbon steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.Product details:
1. Item: G80 eye sling hook with latch2. Grade: 80
3. Material: alloy steel or carbon steel
4. Technology: drop forged
5. Surface: hot dip galvanized,self color
6. WLL: 1.2T-31.5T
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 6mm-32mm
10.Special specifications and marks can be made according to customers requirement
Specification:
Size(mm) |
W.L.L.(T) |
¦µ1(mm) |
¦µ2(mm) |
E(mm) |
D(mm) |
L(mm) |
N.W(kg) |
6-8 |
1.12 |
9 |
20 |
24 |
21 |
108 |
0.3 |
7/8-8 |
2 |
11 |
25 |
30 |
26 |
133 |
0.4 |
10-8 |
3.15 |
15 |
38 |
34 |
35 |
167 |
0.9 |
13-8 |
5.3 |
19 |
43 |
39 |
54 |
213 |
1.7 |
16-8 |
8 |
23 |
50 |
40 |
64 |
255 |
3.2 |
20-8 |
12.5 |
24 |
62 |
46 |
80 |
305 |
5.8 |
22-8 |
15 |
32 |
62 |
71 |
80 |
348 |
8.5 |
26-8 |
21.2 |
35 |
64 |
81 |
82 |
394 |
13 |
32-8 |
31.5 |
37 |
88 |
102 |
112 |
480 |
17 |
Sketch of the G80 eye sling hook with latch
G80 eye sling hook with latch
