Gliding Watertight Lower Rudder Carrier CB*790-87 (Type A)
[Search Related Products]
Gliding Watertight Lower Rudder Carrier CB*790-87 (Type A)
This product is marine gliding watertight lower rudder bearer. We can supply two types of this kind of lower rudder bearing: type A and type B. This one is the type-A sliding watertight lower rudder carrier. It is approved by the standard of CB*790-87. It can be used together with the CB*789-87 upper rudder bearing. Certificates like CCS, BV, GL, LR, ABS, can be provided according to customer¡¯s request.

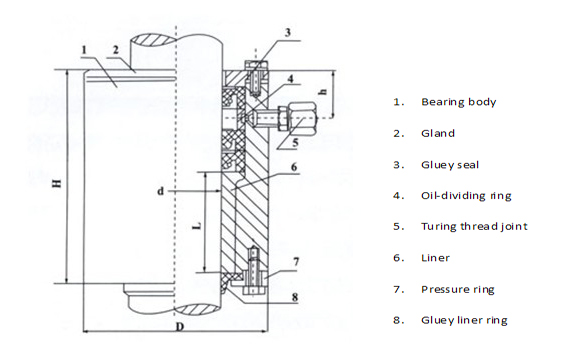

Drawing and specification:
Gliding Watertight Lower Rudder Bearing (Type A)
Type |
Dimensions (mm) |
|||||
d |
D |
H |
L |
h |
||
A |
50 |
50 |
100 |
123 |
60 |
26 |
60 |
60 |
110 |
136 |
70 |
28 |
|
70 |
70 |
125 |
152 |
85 |
28 |
|
80 |
80 |
140 |
162 |
95 |
28 |
|
90 |
90 |
155 |
177 |
110 |
28 |
|
100 |
100 |
160 |
216 |
130 |
37 |
|
110 |
110 |
170 |
226 |
140 |
37 |
|
120 |
120 |
190 |
236 |
150 |
37 |
|
130 |
130 |
205 |
246 |
160 |
37 |
|
140 |
140 |
220 |
255 |
170 |
37 |
|
150 |
150 |
240 |
282 |
195 |
37 |
|
160 |
160 |
250 |
297 |
210 |
37 |
|
170 |
170 |
260 |
307 |
220 |
37 |
|
180 |
180 |
272 |
330 |
235 |
40 |
|
190 |
190 |
292 |
345 |
250 |
40 |
|
200 |
200 |
310 |
359 |
260 |
44 |
|
220 |
220 |
340 |
385 |
286 |
44 |
|
240 |
240 |
370 |
411 |
312 |
44 |
|
260 |
260 |
400 |
448 |
338 |
45 |
|
280 |
280 |
430 |
474 |
364 |
50 |
|
300 |
300 |
456 |
500 |
390 |
50 |
|
320 |
320 |
486 |
530 |
420 |
50 |
|
340 |
340 |
512 |
552 |
442 |
50 |
|
360 |
360 |
540 |
580 |
470 |
50 |
|
380 |
380 |
568 |
605 |
495 |
50 |
|
400 |
400 |
600 |
630 |
520 |
50 |
|
420 |
420 |
634 |
687 |
550 |
62.5 |
|
440 |
440 |
662 |
712 |
575 |
62.5 |
|
460 |
460 |
690 |
737 |
600 |
62.5 |
|
480 |
480 |
720 |
762 |
625 |
62.5 |
|
500 |
500 |
750 |
787 |
650 |
62.5 |

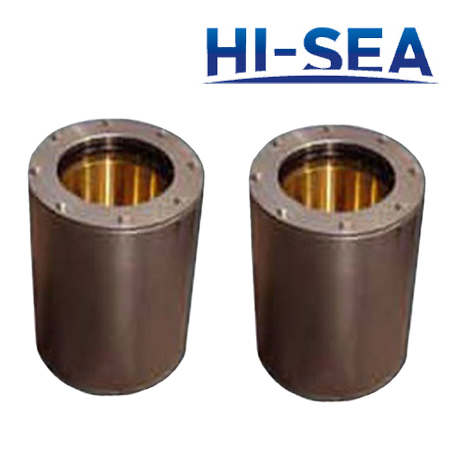

Product displaying:
