Sliding Watertight Lower Rudder Bearing CB*790-87 (Type B)
This product is gliding watertight lower rudder bearing for vessels. There are two types of this kind of lower rudder bearing: type A and type B. This one is the type-B gliding watertight lower rudder carrier. It is approved by CB*790-87 standard and can be used together with the CB*789-87 upper rudder bearing. Our products are certified by certificates such as CCS, BV, GL, LR, ABS, etc. We can provide a specified one as per clientsĄŻ requirement.
Drawing and specification:

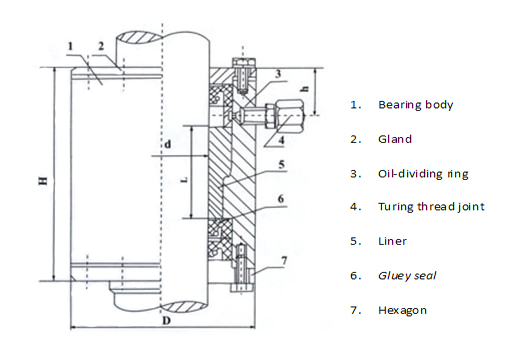

Drawing of Sliding Watertight Lower Rudder Bearing (Type B)
Type |
Dimensions (mm) |
|||||
d |
D |
H |
L |
h |
||
B |
50 |
50 |
100 |
124 |
60 |
26 |
60 |
60 |
110 |
138 |
70 |
28 |
|
70 |
70 |
125 |
153 |
85 |
28 |
|
80 |
80 |
140 |
163 |
95 |
28 |
|
90 |
90 |
155 |
178 |
110 |
28 |
|
100 |
100 |
160 |
220 |
130 |
37 |
|
110 |
110 |
170 |
230 |
140 |
37 |
|
120 |
120 |
190 |
250 |
150 |
37 |
|
130 |
130 |
205 |
260 |
160 |
37 |
|
140 |
140 |
220 |
285 |
170 |
37 |
|
150 |
150 |
240 |
300 |
195 |
37 |
|
160 |
160 |
250 |
310 |
210 |
37 |
|
170 |
170 |
260 |
330 |
220 |
37 |
|
180 |
180 |
272 |
348 |
235 |
40 |
|
190 |
190 |
292 |
366 |
250 |
40 |
|
200 |
200 |
310 |
392 |
260 |
44 |
|
220 |
220 |
340 |
418 |
286 |
44 |
|
240 |
240 |
370 |
458 |
312 |
44 |
|
260 |
260 |
400 |
484 |
338 |
45 |
|
280 |
280 |
430 |
510 |
364 |
50 |
|
300 |
300 |
456 |
540 |
390 |
50 |
|
320 |
320 |
486 |
562 |
420 |
50 |
|
340 |
340 |
512 |
590 |
442 |
50 |
|
360 |
360 |
540 |
615 |
470 |
50 |
|
380 |
380 |
568 |
640 |
495 |
50 |
|
400 |
400 |
600 |
700 |
520 |
50 |
|
420 |
420 |
634 |
725 |
550 |
62.5 |
|
440 |
440 |
662 |
750 |
575 |
62.5 |
|
460 |
460 |
690 |
775 |
600 |
62.5 |
|
480 |
480 |
720 |
800 |
625 |
62.5 |
|
500 |
500 |
750 |
787 |
650 |
62.5 |

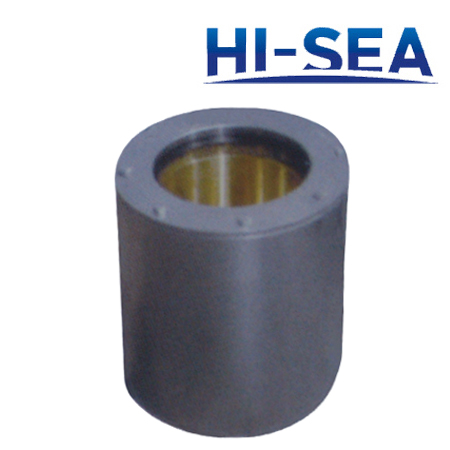

Product showing:

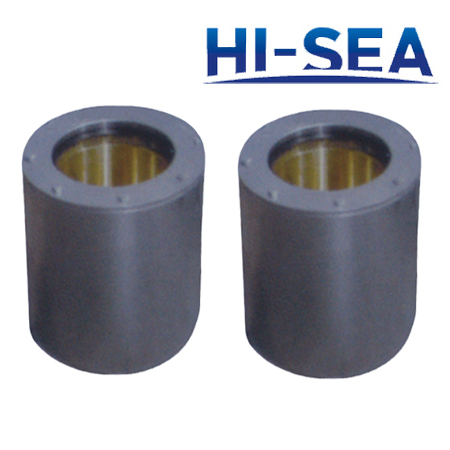

Sliding Watertight Lower Rudder Carrier

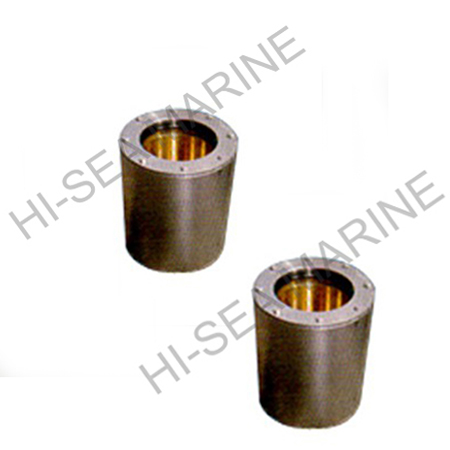

Watertight Lower Rudder Bearer
