Type C Roller Upper Rudder Bearing CB*789-87
[Search Related Products]Type C Roller Upper Rudder Bearing CB*789-87
This product is the type-C roller upper rudder carrier. It is a roller upper bearing with watertight functions. It can automatically adjust the centre of gravity, so it especially apply to the hanging rudder whose load is heavy and revolving degree is large. The diameter range of it is ø120-ø400. It meets the requirement of the CB*789-87 standard. If you are interested in our product, please feel free to contact us. We are very glad to serve you.
Drawing and specification:

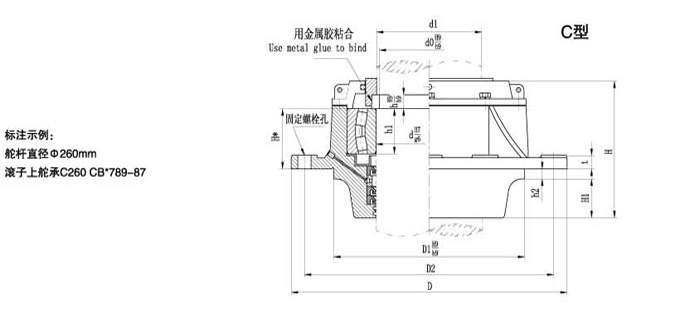

Drawing of Type C Roller Upper Rudder Bearing
Type |
|
Dimensions (mm) |
GB286-84 Bearing Model |
Fixing Bolt |
Weight (kg) |
|||||||||||||
d |
d0 |
d1 |
D |
D1 |
D2 |
t |
h |
h1 |
h2 |
H |
H* |
H1 |
Quantity |
Diameter |
||||
C |
120 |
120 |
110 |
119 |
370 |
220 |
320 |
22 |
20 |
46 |
15 |
179 |
81 |
50 |
3003124 |
12 |
M20 |
37.1 |
130 |
130 |
120 |
128 |
390 |
240 |
340 |
22 |
20 |
52 |
15 |
188 |
89 |
50 |
3003126 |
12 |
M20 |
44.3 |
|
140 |
140 |
130 |
138 |
390 |
240 |
340 |
22 |
20 |
53 |
15 |
190 |
90 |
50 |
3003128 |
12 |
M20 |
45.4 |
|
150 |
150 |
140 |
148 |
410 |
260 |
350 |
22 |
20 |
56 |
15 |
192 |
93 |
50 |
3003130 |
12 |
M20 |
53.3 |
|
160 |
160 |
150 |
158 |
435 |
280 |
385 |
24 |
20 |
60 |
18 |
198 |
86 |
60 |
3003132 |
12 |
M22 |
64.2 |
|
170 |
170 |
160 |
168 |
455 |
300 |
405 |
24 |
20 |
67 |
18 |
211 |
93 |
60 |
3003134 |
12 |
M22 |
86.6 |
|
180 |
180 |
168 |
178 |
470 |
315 |
420 |
24 |
22 |
74 |
18 |
229 |
104 |
65 |
3003136 |
12 |
M22 |
90.3 |
|
190 |
190 |
178 |
188 |
490 |
330 |
440 |
25 |
24 |
75 |
18 |
245 |
105 |
65 |
3003138 |
12 |
M24 |
96.4 |
|
200 |
200 |
188 |
198 |
520 |
360 |
470 |
25 |
25 |
82 |
18 |
248 |
110 |
70 |
3003140 |
12 |
M24 |
107.0 |
|
220 |
220 |
208 |
218 |
540 |
370 |
485 |
25 |
25 |
90 |
20 |
256 |
117 |
70 |
3003144 |
12 |
M24 |
113.5 |
|
240 |
240 |
228 |
238 |
550 |
380 |
495 |
25 |
25 |
92 |
20 |
258 |
118 |
70 |
3003148 |
12 |
M24 |
128.3 |
|
260 |
260 |
245 |
258 |
600 |
420 |
540 |
28 |
28 |
104 |
20 |
280 |
138 |
70 |
3003152 |
12 |
M24 |
170.0 |
|
280 |
280 |
265 |
278 |
640 |
440 |
575 |
28 |
28 |
128 |
20 |
287 |
133 |
80 |
3003156 |
12 |
M27 |
202.0 |
|
300 |
300 |
285 |
298 |
700 |
510 |
630 |
28 |
30 |
118 |
24 |
308 |
146 |
80 |
3003160 |
12 |
M27 |
259.0 |
|
320 |
320 |
305 |
318 |
720 |
520 |
650 |
32 |
30 |
121 |
24 |
313 |
150 |
80 |
3003164 |
12 |
M30 |
286.5 |
|
340 |
340 |
325 |
338 |
760 |
560 |
690 |
32 |
32 |
133 |
24 |
323 |
158 |
80 |
3003168 |
12 |
M30 |
336.0 |
|
360 |
360 |
345 |
358 |
790 |
580 |
720 |
32 |
32 |
134 |
24 |
324 |
165 |
80 |
3003172 |
12 |
M30 |
367.5 |
Product picture:

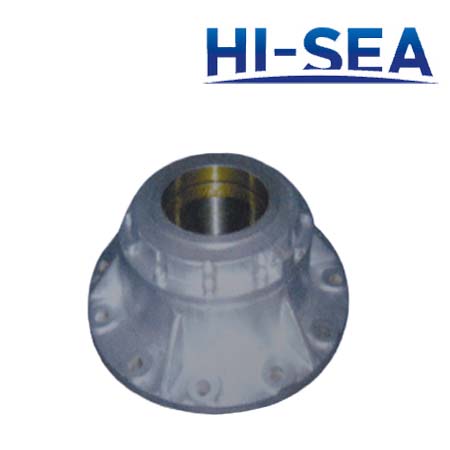

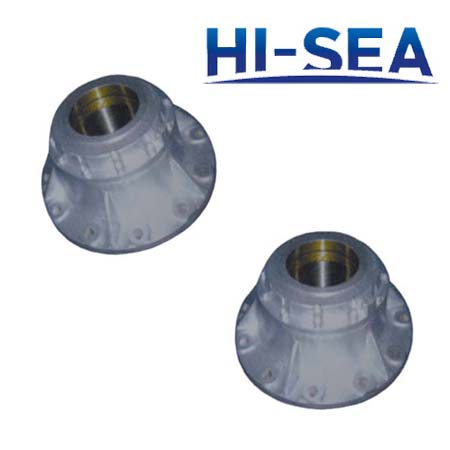

Roller Upper Rudder Carrier
