Upper Rudder Carrier CB*3145-83
This product is marine upper rudder carrier. It is mainly suitable for various inland water vessels. Approved by CB*3145-83 standard, it is used together with CB*3146-83 lower rudder bearing. Certificates about this upper rudder bearing like CCS, ABS, BV, GL, LR can be provide according to clientĄ¯s request. If you are interested in our products, please be free to contact us. We will reply you as soon as possible.
Drawing and specification:

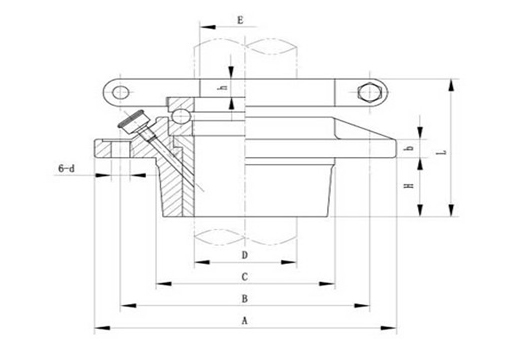

Drawing of Upper Rudder Carrier CB*3145-83
Model |
D |
A |
B |
C |
E |
L |
H |
b |
h |
Bolt |
Weight (kg) |
|
mm |
Quantity |
Diameter |
||||||||||
40 |
40 |
146 |
120 |
80 |
34 |
80 |
34 |
12 |
14 |
6 |
M10 |
2.6 |
50 |
50 |
160 |
134 |
92 |
44 |
92 |
43 |
14 |
14 |
6 |
M10 |
4.8 |
60 |
60 |
188 |
158 |
110 |
52 |
106 |
45 |
14 |
16 |
6 |
M12 |
6.1 |
70 |
70 |
206 |
170 |
122 |
62 |
114 |
51 |
16 |
16 |
6 |
M12 |
9.1 |
80 |
80 |
235 |
199 |
135 |
70 |
124 |
65 |
16 |
18 |
6 |
M12 |
13.2 |
90 |
90 |
260 |
220 |
154 |
80 |
145 |
68 |
18 |
20 |
6 |
M16 |
21.0 |
100 |
100 |
298 |
250 |
174 |
88 |
158 |
70 |
20 |
20 |
6 |
M16 |
26.4 |
110 |
110 |
320 |
272 |
188 |
98 |
168 |
80 |
20 |
20 |
6 |
M16 |
32.3 |
120 |
120 |
342 |
294 |
202 |
106 |
183 |
90 |
22 |
24 |
6 |
M16 |
40.4 |
140 |
140 |
382 |
322 |
230 |
126 |
210 |
110 |
21 |
21 |
6 |
M20 |
55.8 |
160 |
160 |
424 |
354 |
258 |
144 |
239 |
120 |
26 |
28 |
6 |
M20 |
66.2 |
180 |
180 |
456 |
386 |
286 |
164 |
364 |
130 |
28 |
28 |
6 |
M20 |
89.0 |
200 |
200 |
490 |
422 |
318 |
180 |
294 |
140 |
30 |
32 |
6 |
M24 |
125.4 |
220 |
200 |
513 |
446 |
338 |
20 |
315 |
155 |
30 |
32 |
6 |
M24 |
154.0 |
Product showing:

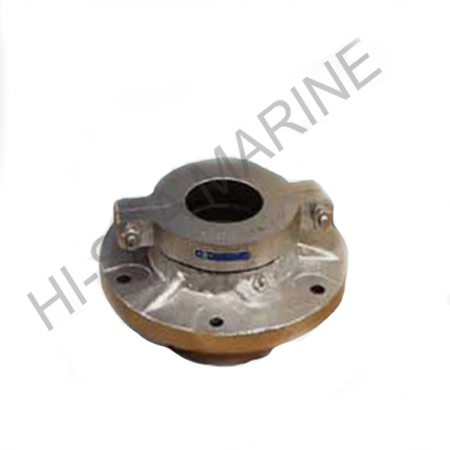

Upper Rudder Bearing CB*3145
