Lower Rudder Carrier CB*3146
This product is marine lower rudder bearing approved by CB*3146-83 standard. It can be used together with CB*3145-83 upper rudder bearer. There are two types of this lower rudder carrier: type-A non-watertight lower rudder bearing and type-B watertight lower rudder bearing. Certificates about the product are CCS, BV, GL, LR, ABS, etc. We can offer the appointed one according to customer¡¯s need.
Drawing and specification:

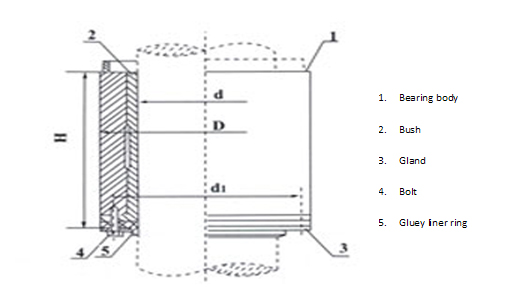

Drawing of Lower Rudder Carrier (Type A)

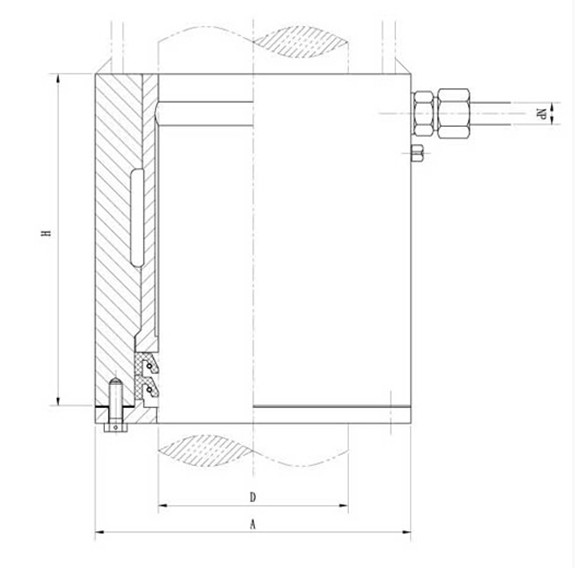

Drawing of Lower Rudder Bearing (Type B)
Model |
d |
D |
d1 |
H |
Bolt |
Weight (kg) |
||
mm |
Qty |
Dia. |
||||||
A |
60 |
60 |
122 |
102 |
112 |
6 |
M60 |
8.0 |
70 |
70 |
132 |
112 |
127 |
6 |
M60 |
10.1 |
|
80 |
80 |
142 |
122 |
142 |
6 |
M60 |
14.3 |
|
90 |
90 |
160 |
138 |
157 |
6 |
M6 |
17.4 |
|
100 |
100 |
180 |
156 |
170 |
6 |
M6 |
22.8 |
|
110 |
110 |
190 |
164 |
185 |
6 |
M8 |
28.5 |
|
120 |
120 |
200 |
174 |
200 |
6 |
M8 |
34.9 |
|
130 |
130 |
224 |
198 |
213 |
6 |
M8 |
41.7 |
|
140 |
140 |
234 |
204 |
228 |
6 |
M8 |
48.4 |
|
150 |
150 |
244 |
214 |
243 |
6 |
M10 |
55.8 |
|
160 |
160 |
254 |
224 |
258 |
6 |
M10 |
63.3 |
|
180 |
180 |
274 |
244 |
288 |
6 |
M10 |
78.0 |
|
200 |
200 |
308 |
268 |
316 |
6 |
M10 |
95.4 |
|
B |
60 |
60 |
122 |
102 |
120 |
6 |
M8 |
8.8 |
70 |
70 |
132 |
112 |
135 |
6 |
M8 |
10.5 |
|
80 |
80 |
142 |
122 |
150 |
6 |
M8 |
14.8 |
|
90 |
90 |
160 |
138 |
165 |
6 |
M8 |
19.5 |
|
100 |
100 |
180 |
156 |
180 |
6 |
M8 |
24.9 |
|
110 |
110 |
190 |
164 |
195 |
6 |
M8 |
28.9 |
|
120 |
120 |
200 |
174 |
210 |
6 |
M8 |
35.4 |
|
130 |
130 |
224 |
198 |
225 |
6 |
M8 |
42.1 |
|
140 |
140 |
234 |
204 |
240 |
6 |
M8 |
49.4 |
|
150 |
150 |
244 |
214 |
255 |
6 |
M10 |
57.3 |
|
160 |
160 |
254 |
224 |
270 |
6 |
M10 |
65.8 |
|
180 |
180 |
274 |
244 |
300 |
6 |
M10 |
87.2 |
|
200 |
200 |
308 |
268 |
330 |
6 |
M10 |
112.6 |
|
220 |
220 |
328 |
292 |
360 |
6 |
M12 |
137.2 |
|
240 |
240 |
348 |
312 |
390 |
6 |
M12 |
165.5 |
|
260 |
260 |
368 |
332 |
420 |
6 |
M12 |
187.7 |
|
280 |
280 |
402 |
362 |
450 |
6 |
M12 |
233.7 |
|
300 |
300 |
422 |
378 |
480 |
6 |
M12 |
264.0 |
Product picture:

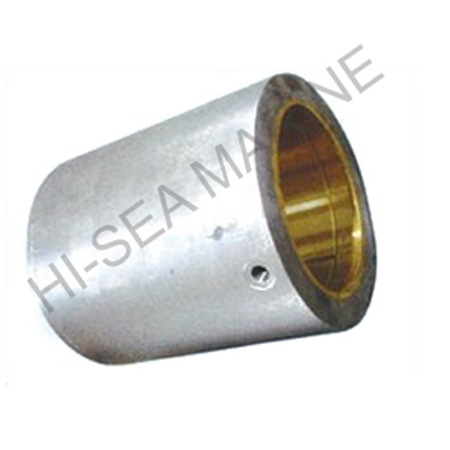

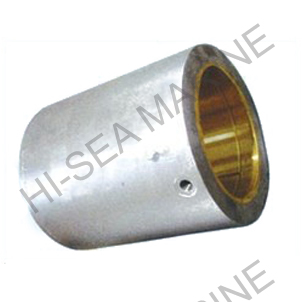

Lower Rudder Carrier

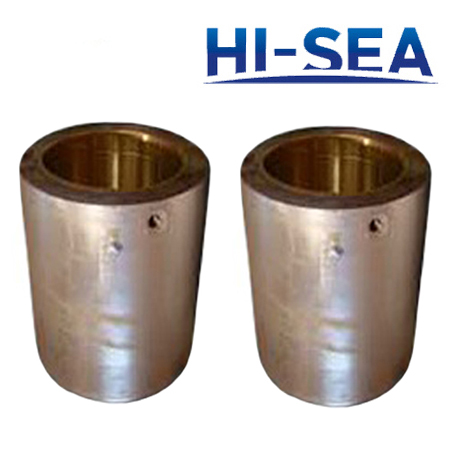

Lower Rudder Bearing CB-3146
