Type B Roller Upper Rudder Bearing CB*789-87
[Search Related Products]Type B Roller Upper Rudder Bearing CB*789-87
This product is the type-B roller upper rudder carrier. With a heavy roller, it is suitable for medium vessel rudder bearing. As it can automatically adjust the centre of gravity, it especially can apply to the hanging rudder whose load is heavy and revolving degree is large. The diameter range of it is ø120-ø340. It is approved by the CB*789-87 standard. If you are interested in our product, please be free to contact us. We will offer the first-rate service.
Drawing and specification:

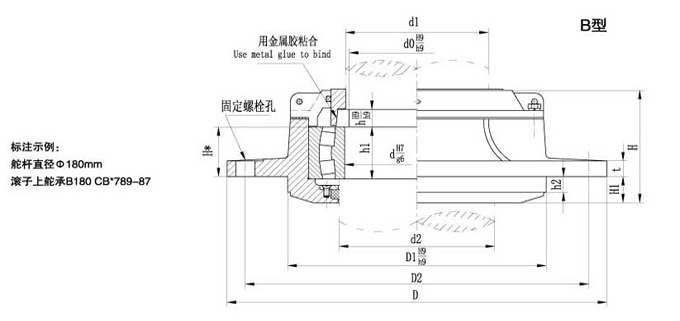

Drawing of Type B Roller Upper Rudder Bearing
Type |
|
Dimensions (mm) |
GB286-84 Bearing Model |
Fixing Bolt |
Weight (kg) |
||||||||||||||
d |
d0 |
d1 |
d2 |
D |
D1 |
D2 |
t |
h |
h1 |
h2 |
H |
H* |
H1 |
Quantity |
Diameter |
||||
B |
120 |
120 |
110 |
119 |
130 |
350 |
220 |
310 |
16 |
20 |
46 |
15 |
106 |
40 |
30 |
3003124 |
6 |
M18 |
25.2 |
130 |
130 |
120 |
128 |
140 |
370 |
240 |
330 |
16 |
20 |
52 |
15 |
114 |
46 |
30 |
3003126 |
6 |
M18 |
31.3 |
|
140 |
140 |
130 |
138 |
150 |
390 |
250 |
650 |
16 |
20 |
53 |
15 |
120 |
48 |
30 |
3001228 |
6 |
M20 |
35.0 |
|
150 |
150 |
140 |
148 |
160 |
400 |
265 |
360 |
16 |
20 |
56 |
15 |
125 |
51 |
30 |
3003130 |
6 |
M20 |
40.0 |
|
160 |
160 |
150 |
158 |
172 |
420 |
286 |
380 |
18 |
20 |
60 |
18 |
127 |
57 |
30 |
3003132 |
6 |
M20 |
49.7 |
|
170 |
170 |
160 |
168 |
182 |
435 |
300 |
395 |
18 |
20 |
67 |
18 |
134 |
57 |
35 |
3003134 |
6 |
M20 |
59.6 |
|
180 |
180 |
168 |
178 |
192 |
460 |
315 |
450 |
18 |
22 |
74 |
18 |
143 |
61 |
38 |
3003136 |
6 |
M20 |
62.0 |
|
190 |
190 |
178 |
188 |
202 |
490 |
330 |
440 |
18 |
24 |
75 |
18 |
158 |
67 |
38 |
3003138 |
6 |
M20 |
72.0 |
|
200 |
200 |
188 |
198 |
212 |
520 |
362 |
470 |
20 |
25 |
82 |
18 |
163 |
72 |
40 |
3003140 |
6 |
M20 |
94.8 |
|
220 |
220 |
208 |
218 |
234 |
550 |
392 |
500 |
20 |
25 |
90 |
20 |
171 |
80 |
40 |
3003144 |
6 |
M24 |
107.5 |
|
240 |
240 |
228 |
238 |
254 |
570 |
410 |
520 |
20 |
25 |
92 |
20 |
173 |
82 |
40 |
3003148 |
6 |
M24 |
118.0 |
|
260 |
260 |
245 |
258 |
278 |
650 |
460 |
585 |
25 |
28 |
104 |
20 |
192 |
92 |
42 |
3003052 |
6 |
M24 |
176.5 |
|
280 |
280 |
265 |
278 |
298 |
670 |
480 |
605 |
25 |
28 |
106 |
20 |
201 |
98 |
42 |
3003156 |
6 |
M27 |
192.0 |
|
300 |
300 |
285 |
298 |
320 |
720 |
520 |
650 |
30 |
30 |
118 |
24 |
210 |
103 |
50 |
3003160 |
6 |
M30 |
210.0 |
|
320 |
320 |
305 |
318 |
340 |
750 |
550 |
680 |
30 |
30 |
121 |
24 |
215 |
96 |
60 |
3003164 |
6 |
M30 |
233.0 |
|
340 |
340 |
325 |
338 |
360 |
780 |
580 |
710 |
30 |
32 |
133 |
24 |
230 |
108 |
60 |
3003168 |
6 |
M30 |
272.0 |

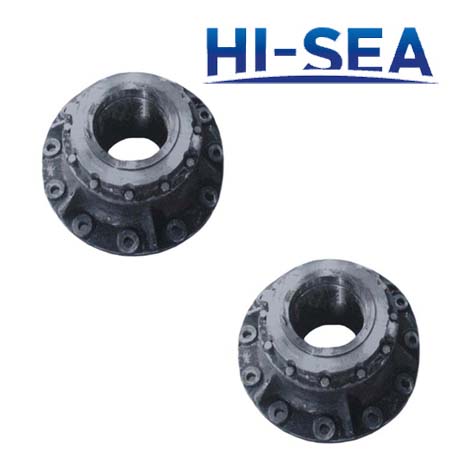

Product showing:
