Type A Roller Upper Rudder Bearing CB*789-87
[Search Related Products]Type A Roller Upper Rudder Bearing CB*789-87
This product is the type-A roller upper rudder carrier. It is a kind of light roller rudder bearings for small vessels. The diameter range of it is ø40-ø150. It can apply to the rudder whose load isn¡¯t heavy and the revolving degree isn¡¯t large. This marine rudder bearing is approved by the CB*789-87 standard. Any question about our product, please be free to contact us. We will reply you as soon as possible.
Drawing and specification:

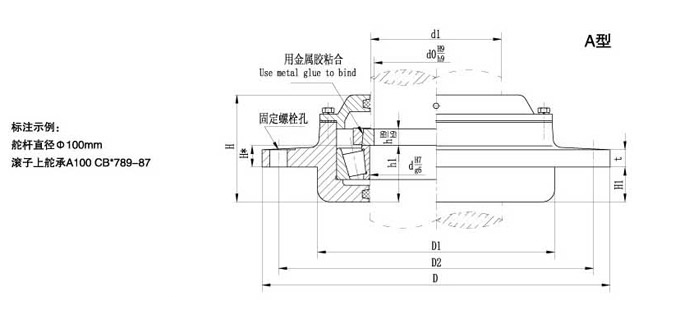

Drawing of Type A Roller Upper Rudder Bearing
Type |
|
Dimensions (mm) |
GB286-84 Bearing Model |
Fixing Bolt |
Weight (kg) |
||||||||||||
d |
d0 |
d1 |
d2 |
D1 |
D2 |
t |
h |
h1 |
H |
H* |
H1 |
Quantity |
Diameter |
||||
A |
40 |
40 |
34 |
39 |
200 |
108 |
170 |
14 |
10 |
36 |
60 |
14 |
22 |
7208 |
6 |
M12 |
6.1 |
50 |
50 |
44 |
49 |
210 |
120 |
180 |
14 |
10 |
40 |
66 |
18 |
22 |
7210 |
6 |
M12 |
6.7 |
|
60 |
60 |
54 |
59 |
230 |
140 |
200 |
15 |
10 |
44 |
70 |
20 |
25 |
7212 |
6 |
M12 |
8.2 |
|
70 |
70 |
60 |
69 |
260 |
155 |
220 |
15 |
10 |
46 |
72 |
21 |
25 |
7214 |
6 |
M16 |
10.7 |
|
80 |
80 |
70 |
79 |
290 |
180 |
250 |
18 |
12 |
49 |
79 |
24 |
25 |
7216 |
6 |
M12 |
15.7 |
|
90 |
90 |
80 |
89 |
320 |
200 |
280 |
20 |
12 |
58 |
91 |
29 |
30 |
7218 |
6 |
M16 |
22.8 |
|
100 |
100 |
90 |
98 |
340 |
220 |
300 |
20 |
12 |
65 |
94 |
30 |
34 |
7220 |
6 |
M16 |
25.3 |
|
110 |
110 |
100 |
108 |
360 |
240 |
320 |
20 |
12 |
69 |
98 |
34 |
34 |
7222 |
6 |
M16 |
30.2 |
|
120 |
120 |
114 |
118 |
380 |
260 |
340 |
20 |
14 |
72 |
102 |
37 |
34 |
7224 |
6 |
M18 |
35.4 |
|
130 |
130 |
114 |
128 |
410 |
290 |
370 |
22 |
14 |
74 |
112 |
38 |
36 |
7226 |
6 |
M18 |
50.1 |
|
140 |
140 |
124 |
138 |
440 |
310 |
395 |
25 |
14 |
77 |
113 |
39 |
36 |
7228 |
6 |
M20 |
58.6 |
|
150 |
150 |
134 |
148 |
460 |
330 |
415 |
25 |
14 |
79 |
117 |
42 |
36 |
7230 |
6 |
M20 |
68.7 |

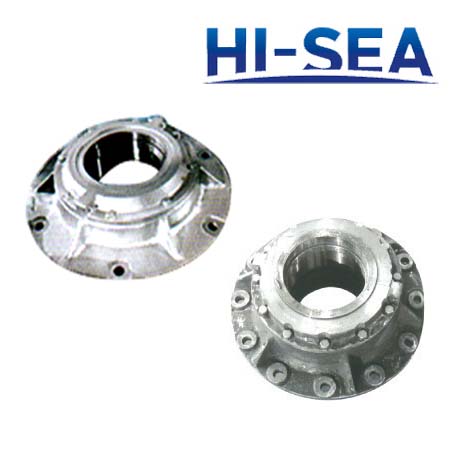

Product displaying:
Type A Roller Upper Rudder Carrier
