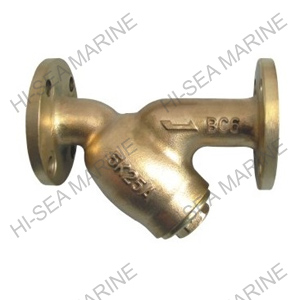

Marine Bronze Y strainer JIS F7220Q
[Search Related Products]
1. Basic info:
(1). Material: bronze
(2). Design standard: JIS F7220Q-1996
(3). Test standard: JIS 7400-1996
(4). Hydraulic test pressure: Body---1.05Mpa
(5). Flange size as per JIS B2220-5K
(6). 10K,20K also available.
2. Main material:
(1). Body: bronze (BC6)
(2). Bonnet: bronze(BC6)
(3). Strainer: stainless steel(SUS304)
(4). Gasket: non-asbestos
3.Fundamental dimensions of Marine Bronze Y strainer JIS F7220Q:
Marine Bronze Y Strainer (Filter) JIS F7220Q
| DN | d | L | D | C | Hole (n-d) | t | H |
| 5K15 | 25 | 165 | 80 | 60 | 4-12 | 9 | 86 |
| 5K20 | 25 | 165 | 85 | 65 | 4-12 | 10 | 86 |
| 5K25 | 25 | 165 | 95 | 75 | 4-12 | 10 | 86 |
| 5K32 | 40 | 170 | 115 | 90 | 4-15 | 12 | 106 |
| 5K40 | 40 | 170 | 120 | 95 | 4-15 | 12 | 106 |
| 5K80 | 80 | 373 | 180 | 145 | 4-19 | 18 | 266 |
| 10K/16K15 | 25 | 165 | 95 | 70 | 4-12 | 12 | 86 |
| 10K/16K20 | 25 | 165 | 100 | 75 | 4-15 | 14 | 86 |
| 10K/16K25 | 25 | 165 | 125 | 90 | 4-19 | 14 | 86 |
| 10K/16K32 | 40 | 170 | 135 | 100 | 4-19 | 16 | 106 |
| 10K/16K40 | 40 | 170 | 140 | 105 | 4-19 | 16 | 106 |

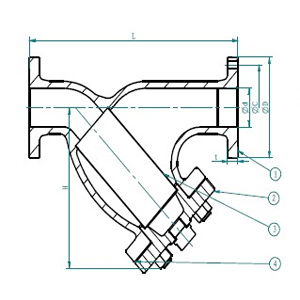

4.Drawing of Marine Bronze Y strainer JIS F7220Q:
5.Certificate available:
