Marine Low Pressure Oil Strainer CB/T425-1994
[Search Related Products]
Marine Low Pressure Oil Strainer CB/T425-1994:
1.Design standard:CB/T425-1994.
2.End standard:GB/T2501&GB/T569.
3.End type:Flange.
4.PN:0.4Mpa.
5.DN:20mm-100mm.
6.Main material:
- Body/Bonnet:HT200;
- Seat:SS410/BC6;
- Stem:SS410/BRASS;
- Disc:SS410/BC6.
7.Application:Oil piping system.
8.Fundamental dimension of Marine Low Pressure Oil Strainer CB/T425-1994:
Chart 1 Fundamental dimensions of type A:
DN |
Structure Dimension |
Thickness |
Flange |
Bont |
Foot |
Weight |
||||||||||
mm |
H |
L1 |
L |
δ |
D |
Di |
D2 |
d |
b |
n |
Th. |
L2 |
L3 |
n |
d |
kg |
20 |
218 |
223 |
145 |
7 |
95 |
68 |
48 |
13 |
14 |
4 |
M12 |
115 |
125 |
4 |
11 |
11 |
25 |
238 |
252 |
170 |
7 |
105 |
73 |
56 |
13 |
14 |
4 |
M12 |
130 |
140 |
4 |
11 |
13 |
32 |
265 |
292 |
195 |
7 |
115 |
83 |
64 |
15 |
15 |
6 |
M14 |
145 |
165 |
4 |
11 |
16 |
40 |
298 |
340 |
210 |
8 |
125 |
93 |
74 |
15 |
16 |
6 |
M14 |
165 |
195 |
4 |
13 |
24 |
50 |
340 |
398 |
235 |
8 |
135 |
103 |
84 |
15 |
16 |
6 |
M14 |
190 |
230 |
4 |
13 |
34 |
65 |
395 |
482 |
270 |
9 |
155 |
123 |
104 |
15 |
15 |
6 |
M14 |
225 |
280 |
4 |
15 |
42 |
80 |
445 |
560 |
300 |
9 |
170 |
138 |
118 |
15 |
15 |
8 |
M14 |
260 |
335 |
4 |
15 |
75 |
100 |
538 |
665 |
340 |
10 |
190 |
158 |
138 |
15 |
15 |
8 |
M14 |
300 |
380 |
4 |
15 |
124 |
Chart 2 Fundamental dimensions of type AS:
DN |
Structure Dimension |
Thickness |
Flange |
Bont |
Foot |
Weight |
||||||||||
(mm) |
H |
L1 |
L |
δ |
D |
D1 |
D2 |
d |
b |
n |
Th |
L2 |
L3 |
n |
d |
kg |
20 |
218 |
223 |
145 |
7 |
90 |
65 |
50 |
11 |
14 |
4 |
M10 |
115 |
125 |
4 |
11 |
10.8 |
25 |
238 |
252 |
170 |
7 |
100 |
75 |
60 |
11 |
14 |
4 |
M10 |
130 |
140 |
4 |
11 |
12.8 |
32 |
265 |
292 |
197 |
7 |
120 |
90 |
70 |
14 |
16 |
4 |
M14 |
145 |
165 |
4 |
11 |
16.9 |
40 |
298 |
340 |
210 |
8 |
130 |
100 |
80 |
14 |
16 |
4 |
M14 |
165 |
195 |
4 |
13 |
24.2 |
50 |
340 |
398 |
235 |
8 |
140 |
110 |
90 |
14 |
16 |
4 |
M14 |
190 |
230 |
4 |
13 |
34.2 |
65 |
395 |
482 |
272 |
9 |
160 |
130 |
110 |
14 |
16 |
4 |
M14 |
225 |
280 |
4 |
15 |
42.6 |
80 |
445 |
560 |
306 |
9 |
190 |
150 |
128 |
18 |
18 |
4 |
M16 |
260 |
335 |
4 |
15 |
76.7 |
100 |
538 |
665 |
346 |
10 |
210 |
170 |
148 |
18 |
18 |
4 |
M16 |
300 |
380 |
4 |
15 |
126.0 |

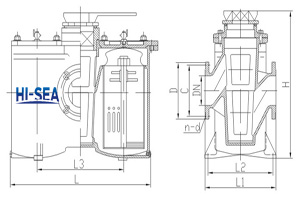

9.Drawing of Marine Low Pressure Oil Strainer CB/T425-1994:
10.Certificate available:
