Marine Cast Iron Can Water Filter JIS F7121 5K (DN100-DN400)
[Search Related Products]
Marine Cast Iron Can Water Filter JIS F7121 5K (DN125-DN400) :
1. Marine can water filter JIS F 7121 5K, S type, LA type, LB type available.
2. Main material:
(1). Body: cast iron(FC200)
(2). Bonnet: cast iron(FC200)
(3). Strainer: stainless steel(SUS304)
(4). Gasket: non - asbestos
(5). Yoke: FCD450
(6). Air vent plug: brass
(7). Drain plug: brass
3. Design standard: JIS F 7121-1996
4. Test standard: JIS 7200-1996
5. Hydraulic test pressure: body-0.3 Mpa
6. Flange size as per JIS B 2220-5K
7.Specification of Marine Cast Iron Can Water Filter JIS F7121 5K (DN125-DN400) :
DN | d | L | L1 | D | C | h | t | H |
125 | 125 | 400 | 200 | 235 | 200 | 19 | 20 | 485 |
150 | 150 | 460 | 230 | 265 | 230 | 19 | 22 | 575 |
200 | 200 | 550 | 275 | 320 | 280 | 23 | 24 | 665 |
250 | 250 | 680 | 340 | 385 | 345 | 23 | 26 | 825 |
300 | 300 | 760 | 380 | 430 | 390 | 23 | 28 | 920 |
350 | 350 | 820 | 410 | 480 | 435 | 25 | 30 | 1030 |
400 | 400 | 880 | 440 | 540 | 495 | 25 | 30 | 1135 |

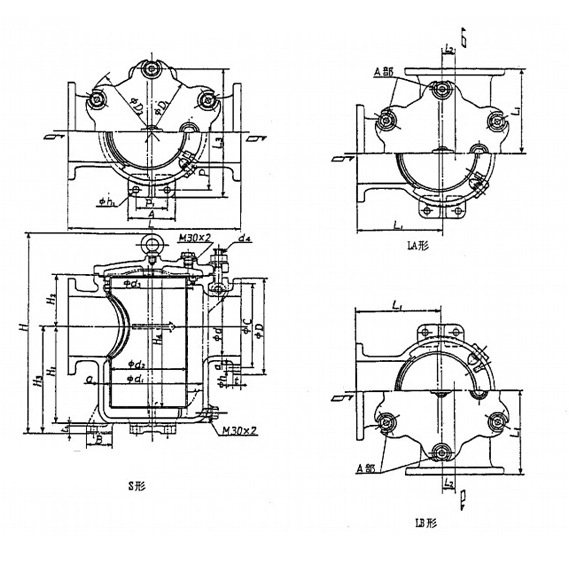

8.Drawing of Marine Cast Iron Can Water Filter JIS F7121 5K (DN125-DN400) :
9.Certificate available:
