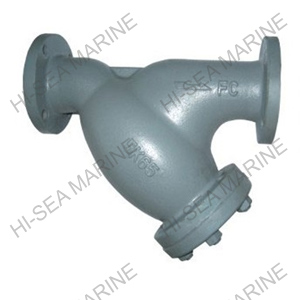

Marine Cast Iron Y strainer JIS F7220:
1. Basic info:
(1). Material: Cast iron
(2). Design standard: JIS F7220-1996
(3). Test standard: JIS 7400-1996
(4). Hydraulic test pressure: Body-- 1.05Mpa
(5). Flange size as per JIS B 2220-5K
2. Main material:
(1). Body: Cast iron (FC200)
(2). Bonnet-Cast iron(FC200)
(3). Strainer-Stainless steel(SUS304)
(4). Gasket: non-asbestos
3.Fundamental dimensions of Marine Cast Iron Y strainer JIS F7220:
Marine Cast Iron Y Type Strainer (Filter) JIS F7220
DN | d | L | D | C | Hole (n-d) | t | H |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
20 | 20 | 200 | 85 | 65 | 4-12 | 14 | 127 |
25 | 25 | 225 | 95 | 75 | 4-12 | 14 | 155 |
32 | 32 | 260 | 115 | 90 | 4-15 | 16 | 164 |
40 | 40 | 280 | 120 | 95 | 4-15 | 16 | 180 |
50 | 50 | 320 | 130 | 105 | 4-15 | 16 | 208 |
65 | 65 | 350 | 155 | 130 | 4-15 | 18 | 253 |
80 | 80 | 373 | 180 | 145 | 4-19 | 18 | 268 |
100 | 100 | 390 | 200 | 165 | 8-19 | 20 | 286 |
125 | 125 | 410 | 235 | 200 | 8-19 | 20 | 295 |
150 | 150 | 430 | 265 | 230 | 8-19 | 20 | 318 |

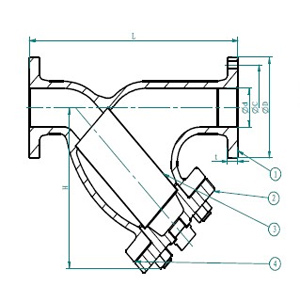

4.Drawing of Marine Cast Iron Y strainer JIS F7220:
5.Certificate available:
