Marine Inhalant Sea Water Filter CB/T497-94 Type A/AS
[Search Related Products]
Marine Inhalant Sea Water Filter CB/T497-94 Type A/AS:
1.Design standard:CB/T497-94.
2.End standard:GB569/GB2501.
3.End type:Flange.
4.PN:0.1Mpa.
5.DN:40mm-350mm.
6.Main material:
- Body/Bonnet:Carbon steel;
- Filter screen:Carbon steel/stainless steel.
7.Application:Fresh water and sea water.
8.Fundamental dimensions of Marine Inhalant Sea Water Filter CB/T497-94 Type A/AS:
Chart 1 Fundamental dimensions of type A:
DN |
L |
H |
H1 |
D0 |
¦Ä |
D |
D1 |
D2 |
b |
d0 |
n |
Th. |
L1 |
L2 |
L3 |
L4 |
d1 |
Weight/kg |
40 |
270 |
225 |
92 |
133 |
5 |
125 |
93 |
74 |
15 |
15 |
6 |
M14 |
_______________ |
12.9 |
||||
50 |
270 |
225 |
92 |
133 |
5 |
135 |
103 |
84 |
15 |
15 |
6 |
M14 |
13.1 |
|||||
65 |
310 |
325 |
122 |
155 |
5 |
155 |
123 |
104 |
14 |
15 |
6 |
M14 |
17.2 |
|||||
80 |
350 |
360 |
152 |
180 |
6 |
170 |
138 |
118 |
14 |
15 |
8 |
M14 |
38.2 |
|||||
100 |
420 |
415 |
182 |
250 |
6 |
190 |
158 |
138 |
14 |
15 |
8 |
M14 |
36.5 |
|||||
125 |
420 |
445 |
182 |
257 |
6 |
215 |
183 |
164 |
14 |
15 |
10 |
M14 |
41.6 |
|||||
150 |
490 |
470 |
190 |
312 |
6 |
240 |
208 |
190 |
14 |
15 |
12 |
M14 |
60.2 |
|||||
200 |
540 |
550 |
240 |
362 |
8 |
295 |
264 |
247 |
15 |
15 |
12 |
M14 |
440 |
410 |
80 |
50 |
17 |
89.6 |
250 |
600 |
675 |
315 |
450 |
8 |
365 |
327 |
306 |
16 |
17 |
14 |
M16 |
520 |
490 |
80 |
50 |
17 |
137 |
300 |
660 |
770 |
340 |
500 |
8 |
430 |
386 |
360 |
19 |
21 |
14 |
M20 |
590 |
560 |
100 |
70 |
17 |
175 |
350 |
850 |
963 |
508 |
580 |
10 |
480 |
436 |
410 |
20 |
21 |
16 |
M20 |
680 |
640 |
120 |
80 |
19 |
359.4 |
400 |
950 |
995 |
515 |
669 |
12 |
530 |
486 |
460 |
21 |
21 |
16 |
M20 |
770 |
730 |
120 |
80 |
19 |
497 |
450 |
1050 |
1040 |
550 |
754 |
12 |
580 |
536 |
512 |
21 |
21 |
18 |
M20 |
880 |
830 |
140 |
90 |
23 |
628 |
500 |
1180 |
1120 |
630 |
854 |
12 |
635 |
591 |
567 |
21 |
21 |
20 |
M20 |
980 |
930 |
160 |
100 |
23 |
760 |
Chart 2 Fundamental dimensions of type AS:
DN |
L |
H |
H1 |
D0 |
¦Ä |
D |
D1 |
D2 |
b |
d0 |
n |
Th. |
L1 |
L2 |
L3 |
L4 |
d1 |
Weight/kg |
40 |
270 |
225 |
92 |
133 |
5 |
130 |
100 |
80 |
16 |
14 |
4 |
M12 |
_______________ |
13.0 |
||||
50 |
270 |
225 |
92 |
133 |
5 |
140 |
110 |
90 |
16 |
14 |
4 |
M12 |
13.2 |
|||||
65 |
310 |
325 |
122 |
155 |
5 |
160 |
130 |
110 |
16 |
18 |
4 |
M12 |
17.4 |
|||||
80 |
350 |
360 |
152 |
180 |
6 |
190 |
150 |
128 |
18 |
18 |
4 |
M16 |
21.7 |
|||||
100 |
420 |
415 |
182 |
250 |
6 |
210 |
170 |
148 |
18 |
18 |
4 |
M16 |
38.4 |
|||||
125 |
420 |
445 |
182 |
257 |
6 |
240 |
200 |
178 |
20 |
18 |
8 |
M16 |
43.4 |
|||||
150 |
490 |
470 |
190 |
312 |
6 |
265 |
225 |
202 |
20 |
18 |
8 |
M16 |
62.1 |
|||||
200 |
540 |
550 |
240 |
362 |
8 |
320 |
280 |
258 |
22 |
18 |
8 |
M16 |
440 |
410 |
80 |
50 |
17 |
92.7 |
250 |
600 |
675 |
315 |
450 |
8 |
375 |
335 |
312 |
24 |
18 |
12 |
M16 |
520 |
490 |
80 |
50 |
17 |
140 |
300 |
660 |
770 |
340 |
500 |
8 |
440 |
395 |
365 |
24 |
22 |
12 |
M20 |
590 |
560 |
100 |
70 |
17 |
176 |
350 |
850 |
963 |
508 |
580 |
10 |
490 |
445 |
415 |
26 |
22 |
12 |
M20 |
680 |
640 |
120 |
80 |
19 |
366.4 |
400 |
950 |
995 |
515 |
669 |
12 |
540 |
495 |
465 |
28 |
22 |
16 |
M20 |
770 |
730 |
120 |
80 |
19 |
504 |
450 |
1050 |
1040 |
550 |
754 |
12 |
595 |
550 |
520 |
30 |
22 |
16 |
M20 |
880 |
830 |
140 |
90 |
23 |
638 |
500 |
1180 |
1120 |
630 |
854 |
12 |
645 |
600 |
570 |
30 |
22 |
20 |
M20 |
980 |
930 |
160 |
100 |
23 |
769 |

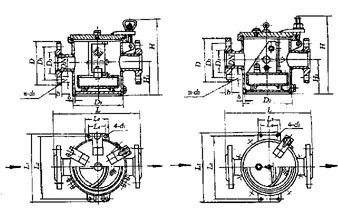

9.Drawing of Marine Inhalant Sea Water Filter CB/T497-94 Type A/AS:
10.Certificate available:
