Marine Cast Iron Can Water Filter JIS F7121 5K (DN25-DN100)
[Search Related Products]
Marine Cast Iron Can Water Filter JIS F7121 5K (DN25-DN100) :
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:5k.
5.DN:25mm-100mm.
6.Maiin material:
-
Body/Bonnet:FC200;
-
Strainer:SUS304;
-
Yoke:FC450;
-
Air vent plug:BRASS;
-
Drain plug:BRASS.
7.Specification of Marine Cast Iron Can Water Filter JIS F7121 5K (DN25-DN100) :
| DN | d | L | L1 | D | C | h | t | H |
| 25 | 25 | 170 | 85 | 95 | 75 | 12 | 14 | 191 |
| 32 | 32 | 190 | 95 | 115 | 90 | 15 | 16 | 218 |
| 40 | 40 | 190 | 95 | 120 | 95 | 15 | 16 | 218 |
| 50 | 50 | 200 | 100 | 130 | 105 | 15 | 16 | 239 |
| 65 | 65 | 250 | 125 | 155 | 130 | 15 | 18 | 306 |
| 80 | 80 | 270 | 135 | 180 | 145 | 19 | 18 | 341 |
| 100 | 100 | 320 | 160 | 200 | 165 | 19 | 20 | 401 |

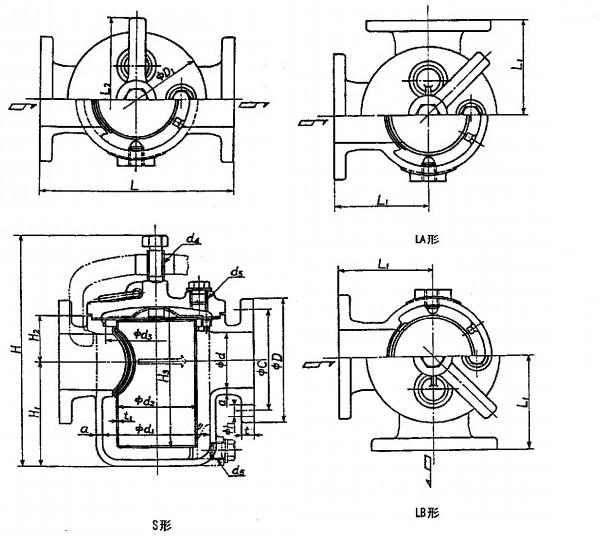

8.Drawing of Marine Cast Iron Can Water Filter JIS F7121 5K (DN25-DN100) :
9.Certificate available:
