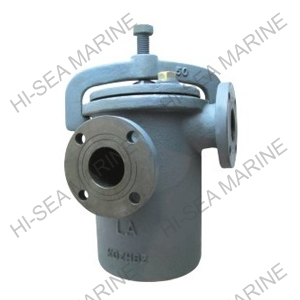

Marine Simplex Oil Strainer JIS F7209
[Search Related Products]
Marine Simplex Oil Strainer JIS F7209:
1. LA, LB strainer available.
2. Material:
(1). Body: FC200
(2). Bonnet: FC200
(3). Cover push: FCD400
(4). Strainer: SS400(SUS 304)
3. Design standard: JIS F 7209-1996
4. Test: JIS F 7200-1996
5.Fundamental dimensions of Marine Simplex Oil Strainer JIS F7209
Marine Simplex Oil Strainer JIS F7209
DN | d | L | L (LA/LB) | D | C | Hole (n-d) | t | H |
5K20 | 25 | 190 | 85 | 65 | 4-12 | 14 | 240 | |
5K25 | 25 | 190 | 95 | 95 | 75 | 4-12 | 14 | 240 |
10K25 | 25 | 190 | 95 | 125 | 90 | 4-19 | 16 | 240 |
5K32 | 32 | 260 | 130 | 115 | 90 | 4-15 | 18 | 328 |
10K32 | 32 | 260 | 130 | 135 | 100 | 4-19 | 20 | 328 |
5K40 | 40 | 260 | 130 | 120 | 95 | 4-15 | 16 | 328 |
10K40 | 40 | 260 | 130 | 140 | 105 | 4-19 | 20 | 328 |
5K50 | 50 | 280 | 140 | 130 | 105 | 4-15 | 16 | 405 |
10K50 | 50 | 280 | 140 | 155 | 120 | 4-19 | 20 | 405 |
5K65 | 65 | 340 | 170 | 155 | 130 | 4-15 | 18 | 495 |
10K65 | 65 | 340 | 170 | 175 | 140 | 4-19 | 22 | 495 |
5K80 | 80 | 370 | 185 | 180 | 145 | 4-19 | 18 | 525 |
10K80 | 80 | 370 | 185 | 185 | 150 | 8-19 | 22 | 525 |
5K100 | 100 | 420 | 210 | 200 | 165 | 8-19 | 20 | 651 |
10K100 | 100 | 420 | 210 | 210 | 175 | 8-19 | 24 | 651 |

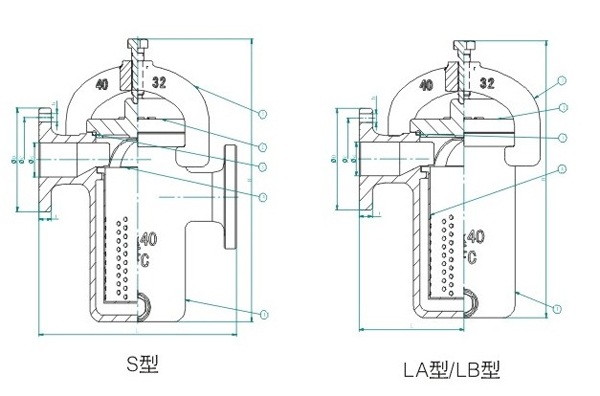

6.Drawing of the oil strainer:
7.Certification available:
