 Marine Brass Socket with Switch

HNA 10A\16A Marine Brass Socket with Switch

Marine Brass Socket with Switch is used for connecting cutting on or off the appliance circuit with AC or CD low-voltage.They are HNA series.Here are some details of five types of Marine Brass Socket with Switch as follows:


Technical Parameter :

Protection class:IP56

Adopted standard:DIN89263

Cable outside diameter: ¦µ14~¦Õ16

 Marine Brass Socket with Switch

Specifications:

Code General cable type Shield cable type Weight
1144
CZKH101-1 CZKH111-1 1.50kg
CZKH101-2 CZKH111-2 1.60kg
CZKH101-3 CZKH111-3 1.60kg
CZKH101-4 CZKH111-4 1.60kg
CZKH101-5 CZKH111-5

1.70kg

 Marine Brass Socket with Switch

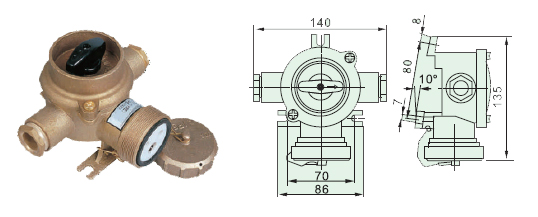

1144 Marine Brass Socket with Switch Drawing


Code General cable type Shield cable type Weight
1144\R
CZKH109-1 CZKH119-1 1.50kg
CZKH109-2 CZKH119-2 1.60kg
CZKH109-3 CZKH119-3 1.60kg
CZKH109-4 CZKH119-4 1.60kg
CZKH109-5 CZKH119-5 1.70kg


 Marine Brass Socket with Switch

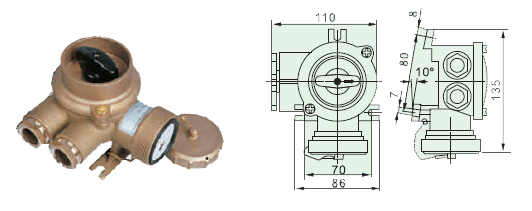

1144\R Marine Brass Socket with Switch Drawing


Code General cable type Shield cable type Weight

1144\D

CZKH201-1 CZH211-1 1.70kg
CZKH201-2 CZH211-2 1.80kg
CZKH201-3 CZH211-3 1.80kg
CZKH201-4 CZH211-4 1.80kg

CZKH201-5

CZH211-5

1.90kg


 Marine Brass Socket with Switch

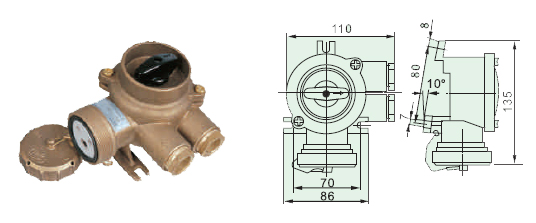

1144\D Marine Brass Socket with Switch Drawing



Code General cable type Shield cable type Weight
1144\2
CZKH202-1 CZKH212-1 1.70kg
CZKH202-2 CZKH212-2 1.80kg
CZKH202-3 CZKH212-3 1.80kg
CZKH202-4 CZKH212-4 1.80kg
CZKH202-5 CZKH212-5 1.90kg


 Marine Brass Socket with Switch

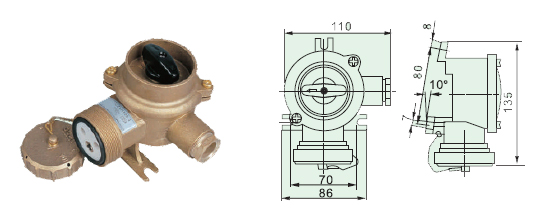

1144\2 Marine Brass Socket with Switch Drawing



Code General cable type Shield cable type Weight
1144\2\R
CZKH209-1 CZKH219-1 1.70kg
CZKH209-2 CZKH219-2 1.80kg
CZKH209-3 CZKH219-3 1.80kg
CZKH209-4 CZKH219-4 1.80kg
CZKH209-5 CZKH219-5 1.90kg

 Marine Brass Socket with Switch

1144\2\R Marine Brass Socket with Switch Drawing
