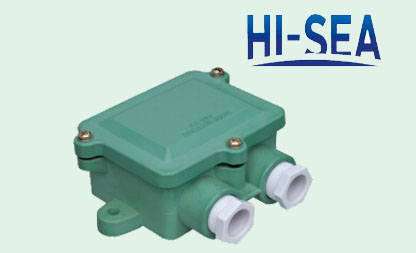

Marine Water-tight Junction Box and Switch

Marine Water-tight Junction Box and Switch

The material of Marine Water-tight Junction Box and Switch is synthestic resin.The Protection class is IP56.They conform to JISF8832,8833 standard.

Technical Parameter :

Material:synthestic resin

Protection class:IP56

Conform to JISF8832,8833standard

Specifications:

Type	International code	Voltage	Current	Cable outside diameter
K-2MR	793017	250V	10A	φ14-φ16

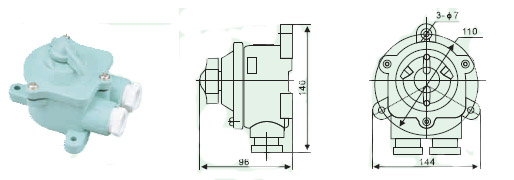

K-2MR Drawing of Marine Waterproof Switch

Type	International code	Voltage	Current	Cable outside diameter
J-1M	794831	250V	20A	φ14-φ16

Marine Water-tight Junction Box and Switch

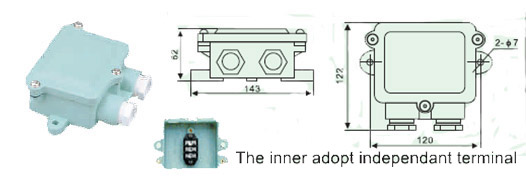

J-1M Drawing of Marine Wate-tight Junction Box

Type	International code	Voltage	Current	Cable outside diameter
J-2M	794833	250V	20A	φ14-φ16

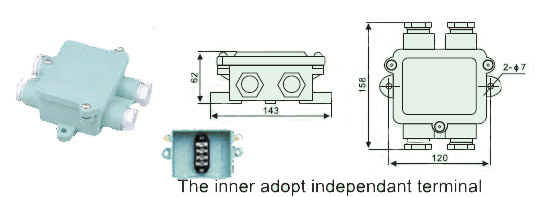

J-2M Drawing of Marine Water-tight Junction Box

Type	Voltage	Current	Cable outside diameter
1N-PB	500V	20A	φ14-φ16

Marine Water-tight Junction Box and Switch

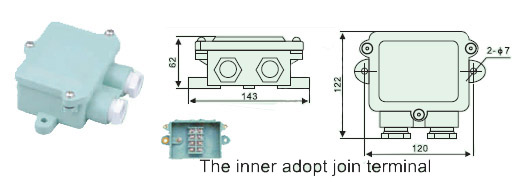

1N-PB Drawing of Marine Water-tight Junction Box

Type	Voltage	Current	Cable outside diameter
1N-PC	500V	20A	φ14-φ16

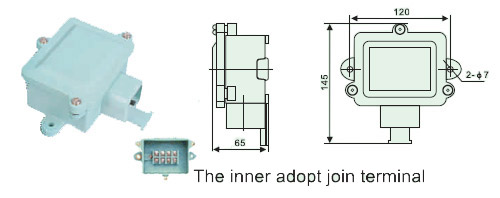

1N-PC Drawing of Marine Water-tight Junction Box

Type	Voltage	Current	Cable outside diameter
2N-PB	500V	20A	φ14-φ16

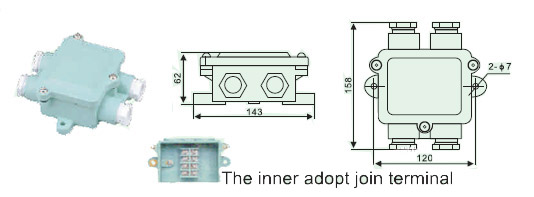

2N-PB Drawing of Marine Water-tight Junction Box

Marine Water-tight Junction Box and Switch

J-1M 794831 Marine Water-tight Junction Box
