Marine Cabin Switch and Plug

Marine Cabin Switch and Plug

The Voltage of Marine Cabin Switch and Plug is 250V.The current is 16A.

Technical Parameter:

Protection Class:IP20

Conform to Standard:GB2099,IEC844-1

Specifications:

Type	Voltage	Current
HE-2N-1	250V	16A

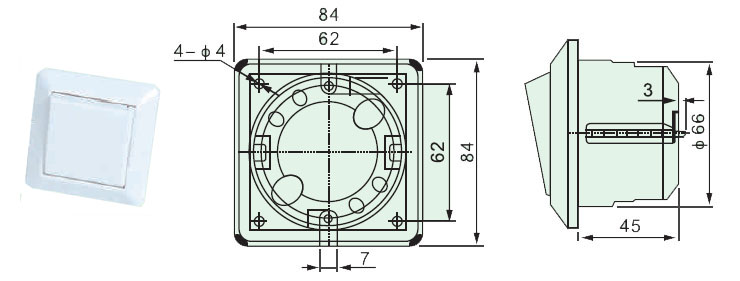

HE-2N-1 Drawing of Marine Cabin Switch

Type	Voltage	Current
HE-2N-2	250V	16A

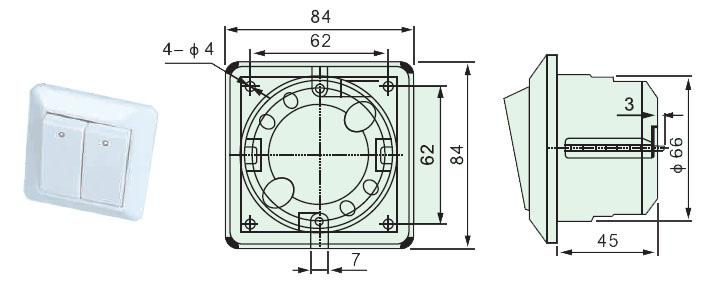

HE-2N-2 Drawing of Marine Cabin Switch

Type	Voltage	Current
CCT2-2	250V	16A

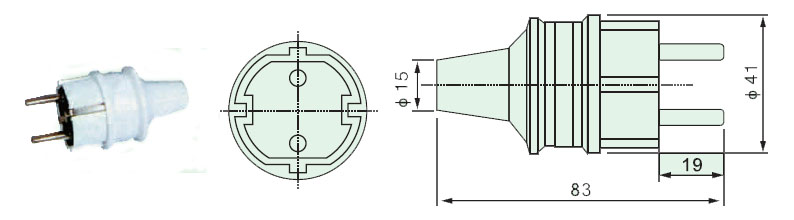

CCT2-2 Drawing of Marine Cabin Plug

Type	Voltage	Current
CTE2-2Y-1	250V	16A

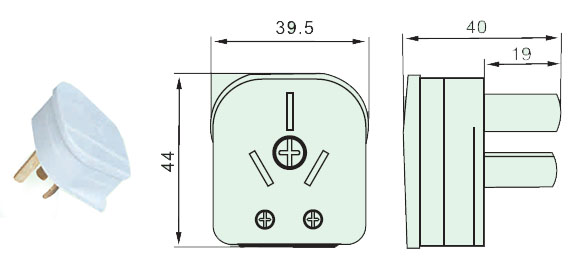

CTE2-2Y-1 Drawing of Marine Cabin Plug

Type	Voltage	Current
CTE2-2B-1	250V	10A

N-Dark type M-Bright type B-Flat form Y-Round form

Hidden Box:

JXN-1 Drawing of Hidden Box

JXN-2 Drawing of Hidden Box

Instruction：

CCT2-2\ HE-2N-2 adopt international IEC standard,wiring-type is inner-installation,with junction box JXN-2

CTE2-2B-1 wiring-type is outer-installation,with junction box JXN-1

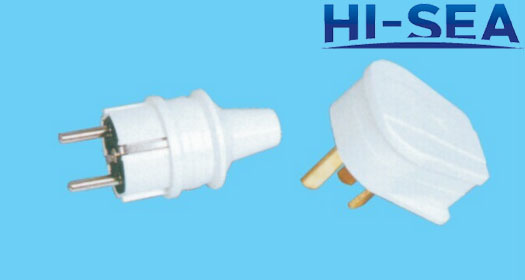

CCT2-2\CTE2-2Y-1 Marine Cabin Plug
