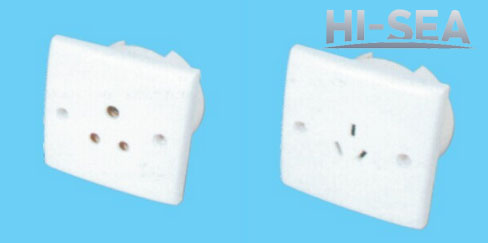

Marine Cabin Socket

Marine Cabin Socket

Marine Cabin Socket mainly supply power.It has high quality.

Technical Parameter:

Protection Class:IP20

Conform to Standard:GB2099,IEC844-1

Specifications:

Type	Voltage	Current
CCZ2-2	250V	16A

CZZ2-2 Drawing of Marine Cabin Socket

Type	Voltage	Current
CZE2-2N-2N	250V	10A

CZE2-2N-2N Drawing of Marine Cabin Socket

Type	Voltage	Current
CZE2-2B-2N	250V	10A

CZE2-2B-2N Drawing of Marine Cabin Socket

Type	Voltage	Current
CZE2-2Y-1N	250V	10A

CZE2-2Y-1N Drawing of Marine Cabin Socket

Type	Voltage	Current
CZE2-2B-1N	250V	10A

CZE2-2B-1N Drawing of Marine Cabin Socket

N-Dark type M-Bright type B-Flat form Y-Round form

Hidden Box

JXN-1 Drawing of Hidden Box

JXN-2 Drawing of Hidden Box

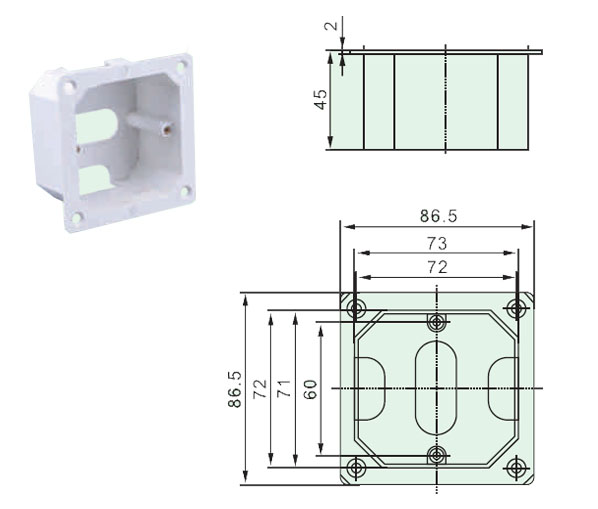

JXN-3 Drawing of Hidden Box

Instruction:

CCZ2-2\ CZE2-2N-2N adopt international IEC standard,wiring-type is inner-installation,with junction box JXN-2

CTE2-2Y-1\CZE2-2Y-1N\CZE2-2B-1N wiring-type is outer-installation,with junction box JXN-1

CZE2-2Y-1N\CZE2-2B-1N Marine Cabin Socket
