Marine FL Lamp Holder

Marine FL Lamp Holder

Marine FL Lamp Holder includes various types.Their voltage is 250V,300V and 600V.Their current is 1A and 3A.You can select what you need.

Technical Parameter:

Protection class:IP56

Adopted standard:DIN89267\DIN89262

Cable outside diameter:Φ14~φ16

Specifications:

International code	Voltage	Current
791521	250V	1A

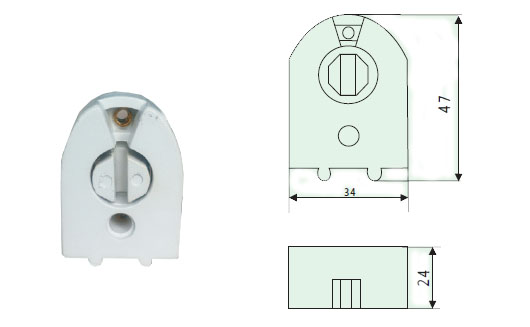

791521 Drawing of Marine FL Lamp Holder Rotor

International code	Voltage	Current
791522	250V	3A

Marine FL Lamp Holder

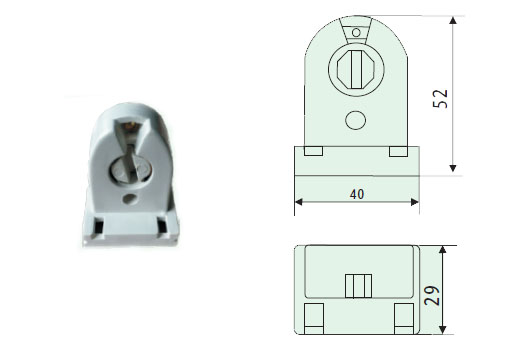

791522 Drawing of Marine FL Lamp Holder Rotor

International code	Voltage	Current
791525	250V	1A

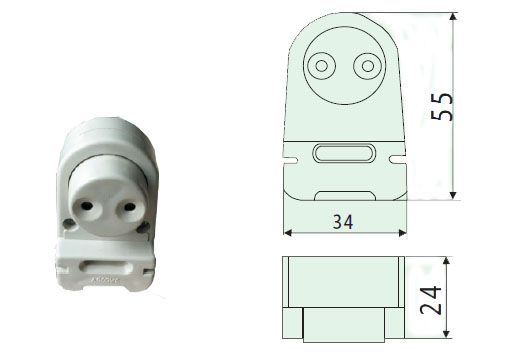

791525 Drawing of Marine FL Lamp Holder Spring Loaded Support

International code	Voltage	Current
791526	250V	1A

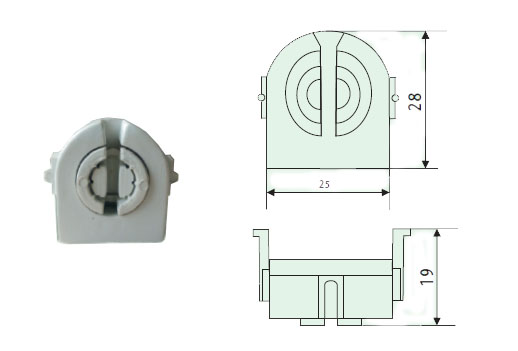

791526 Drawing of Marine FL Lamp Holder Spring Loaded Support

International code	Voltage	Current
791528	300V	1A

Marine FL Lamp Holder

791528 Drawing of Marine FL Lamp Holder Rotor

International code	Voltage	Current
791529	600V	1A

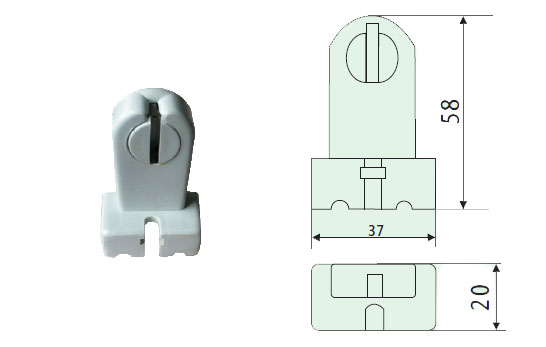

791529 Drawing of Marine FL Lamp Holder Rotor

International code	Voltage	Current
791532	300V	1A

Marine FL Lamp Holder

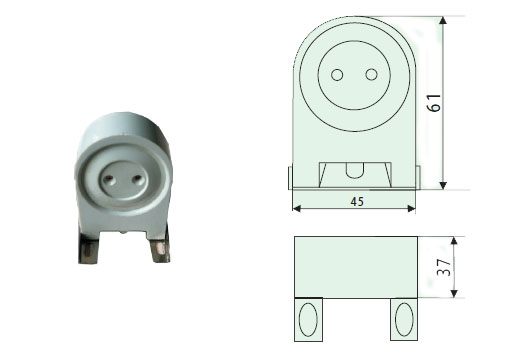

791532 Drawing of Marine T8 Watertight Fluorescent Lamp Holder

International code	Voltage	Current
791533	300V	1A

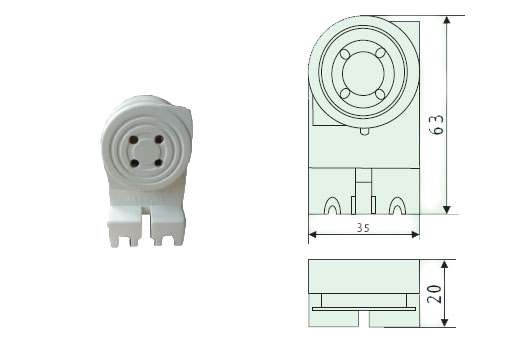

791533 Drawing of Marine FL Lamp Holder
