Marine Plug and Socket

Marine Plug and Socket

Marine Plug and Socket belong to series of cabin plug and socket.The volatge is 250V.The current is 15A.

Technical Parameter:

Protection class:IP20

Conform to standard:GB2099,IEC884-1

Specifications:

Type	International code	Voltage	Current
UB	792901	250V	15A

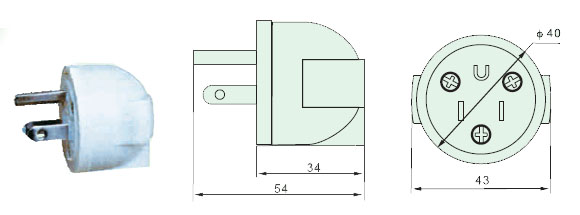

UB Drawing of Marine Plug

Type	International code	Voltage	Current
UB-1B	792904	250V	15A

UB-1B Drawing of Marine Plug

Type	International code	Voltage	Current
U	792902	250V	15A

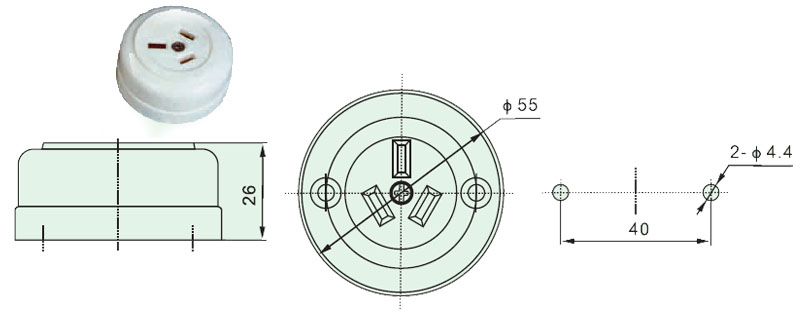

U Drawing of Marine Socket

Type	International code	Voltage	Current
UB-1	792905	250V	15A

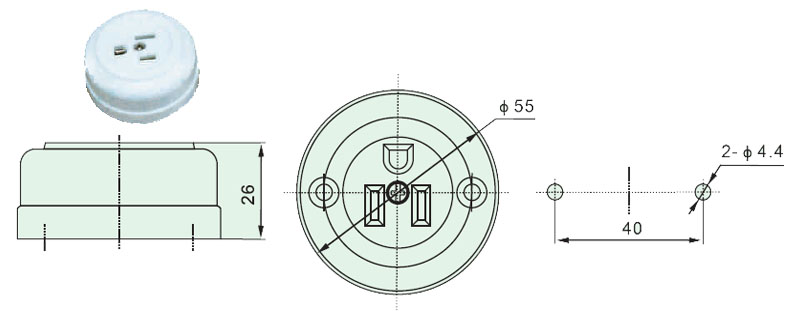

UB-1 Drawing of Marine Socket

UB Marine Plug\U Marine Socket

Marine Electric Connectors
