Marine Water-tight Plug
[Search Related Products]
The material of Marine Water-tight Plug is synthestic resin.It conforrms to JISF8832,8833 standard.The protection class is IP56.
Technical Parameter :
Material:synthestic resin
Protection class:IP56
Conform to JISF8832,8833standard
Specifications:
|
Type |
International code |
Voltage |
Current |
Cable outside diameter |
|
T-1MA |
792801 |
250V |
20A |
¦µ10-¦Õ11 |

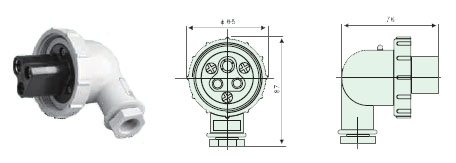

T-1MA Drawing of Marine Water-tight Plug
|
Type |
International code |
Voltage |
Current |
Cable outside diameter |
|
T-2MA |
792803 |
250V |
20A |
¦µ14-¦Õ16 |

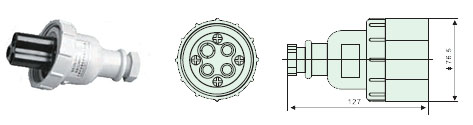

T-2MA Drawing of Marine Water-tight Plug
|
Type |
Voltage |
Current |
Cable outside diameter |
|
T-MA |
24V |
10A |
¦µ10-¦Õ11 |

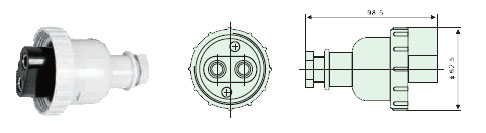

T-MA Drawing of Marine Water-tight Plug
|
Type |
International code |
Voltage |
Current |
Cable outside diameter |
|
T-1MB |
792802 |
250V |
20A |
¦µ10-¦Õ11 |

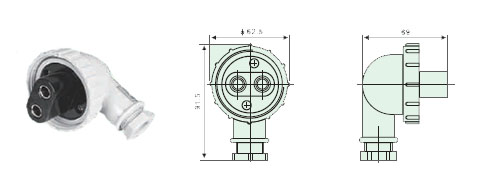

T-1MB Drawing of Marine Water-tight Plug
|
Type |
International code |
Voltage |
Current |
Cable outside diameter |
|
T-2MB |
792804 |
250V |
20A |
¦µ14-¦Õ16 |

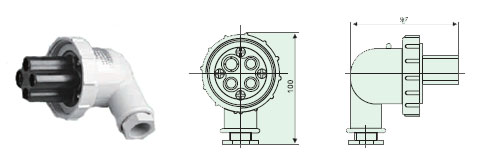

T-2MB Drawing of Marine Water-tight Plug
|
Type |
Voltage |
Current |
Cable outside diameter |
|
T-MB |
24V |
10A |
¦µ10-¦Õ11 |

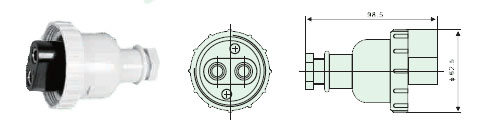

T-MB Drawing of Marine Water-tight Plug
T-1MA Marine Water-tight Plug
