Marine Cable Gland

Marine Cable Gland

Marine Cable Gland is designed to link and secure the end of the cables.It is also designed to resist water,dust,salt,acid-base,alcohol,oil and common solvent.The material of Marine Cable Gland is brass or stainless steel. The clamping ring is made of nitrile.It is extremely easy installation.

Technical Parameter:

Protection Standard:IP54

Type:TJ TH

Specifications:

d(Through-hole dimensions)	D(Thread interface)	Outer diameter of suitable cables
TJ8	M14	5-7
TJ13	M18	8-12
TJ16	M22	11-15
TJ19	M27	14-18
TJ24	M30	17-23
TJ28	M36	22-27
TJ34	M42	26-33
TJ42	M52	32-41
TJ50	M58	40-49
TJ58	M68	48-57

TJ National standard cable stuffing box

TJ Drawing of Marine Cable Gland

d(Through-hole dimensions)	D(Thread interface)	Outer diameter of suitable cables
TH8	ф13	5-7
TH13	ф17	6-12
TH16	ф22	11-15
TH19	ф25	14-18
TH24	ф30	17-22
TH28	ф35	22-27
TH34	ф42	26-33
TH42	ф50	32-41
TH50	ф58	40-49
TH58	ф66	48-57

TH Suitable cables for TH welding type cable stuffing box

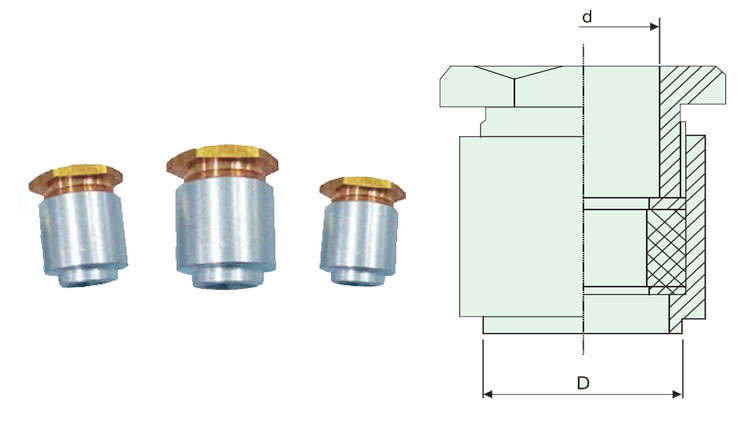

TH Drawing of Marine Cable Gland

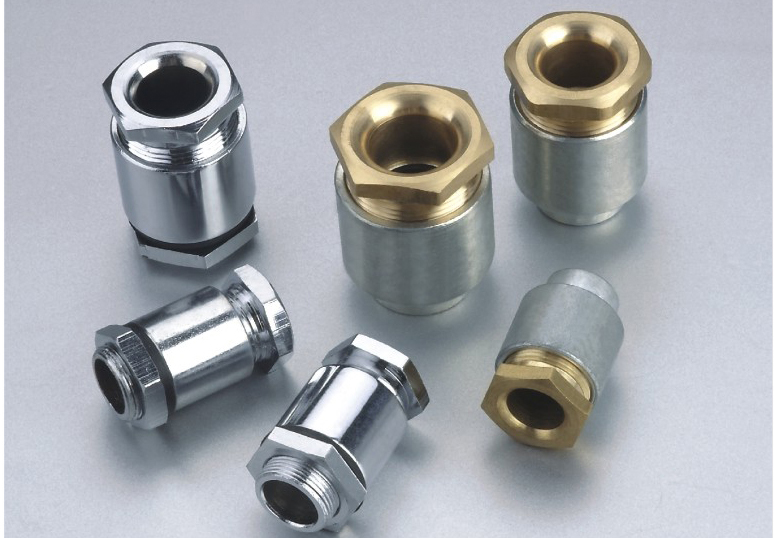

TJ \ TH Marine Cable Gland
