12-Inch Marine Digital Radar employs with high-gain antenna, high-power transceiver, various interfaces, ARPA and alarm functions. This radar supports displaying AIS information of overlapped signals. This function increase the judgment of false echoes. This radar can detect the target over 40 nautical miles.

Features

▪ Ultra-clear display of radar targets

▪ Easy to operate

▪ The integrated function of ARPA and AIS

▪ Stable performance

▪ The unique function of tracking fish nets’ location

Specifications

Project	Data

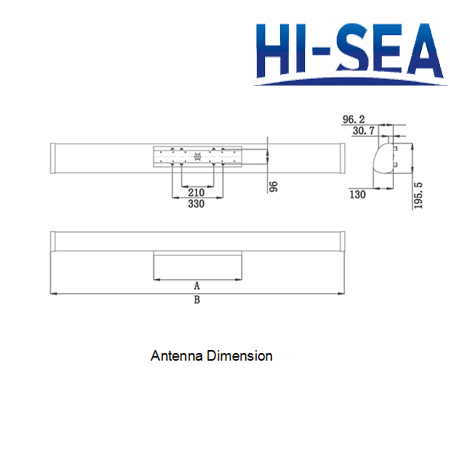

Antenna Radiator	Type	slotted waveguide display
	Length	1.2m, 1.95m
	Beamwidth	Hor: 0.9-1.3°(±0.1°), Vert:20-28°
	Speed	24rmp ( wind load 100 knots)
Transceiver	Frequency	9410±30MHz
	Peak Output Power	4KW/6KW
	Intermediate Frequency	60MHz
	Bandwidth	3MHz, 10MHz, 28MHz
	Pulse Length(µs)	0.05, 0.15, 0.3, 0.6, 1.0
	Pulse Repetition Frequency	3000, 2000, 1500, 1000, 650
	Range Resolution	25m
	Angular Resolution	1.2°
	Noise	<3.5 dB

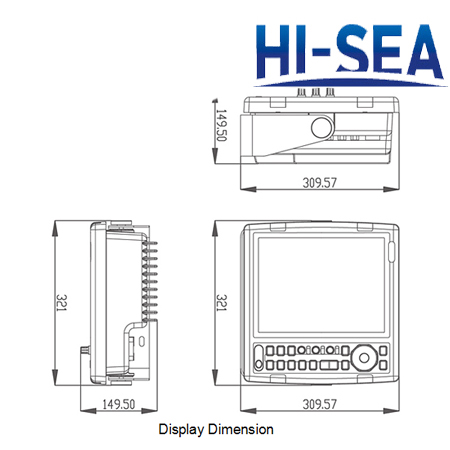

Display Unit	Size	12’’
	Resolution	800×600
	Display Modes	head-up, north-up
	Range	0.125-96nm
	Interface	AIS interface, compass interface
Temperature	Display Unit	-15℃-+55℃
Temperature	Transceiver	-25℃-+70℃
Waterproof	Display Unit	IP5/5
Waterproof	Transceiver	IP5/6
Power Supply	DC 18V-36V, 120W
