Marine Anemometer

Marine Anemometer

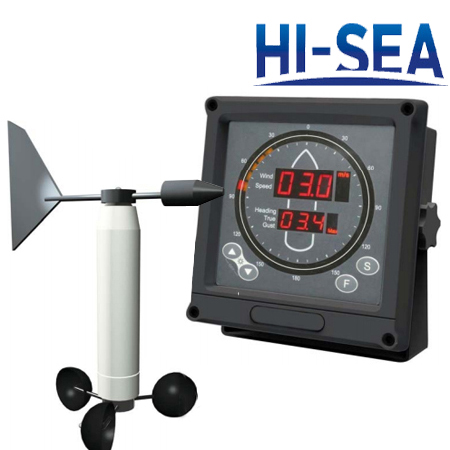

Marine Anemometer is an integrated instrument for wind speed and wind direction. It is used to measure wind speed which achieves very high accuracy. Besides, it also can display relative wind direction. This product has functions of alarm and printing. It gets the approval of CCS.

Features

▪ High precision

▪ Temperature resistance

▪ Moistureproof

▪ High-brightness LED display

▪ Real-time wind direction display

Specifications

Project	Data
Speed Display	digital LED
Direction Display	direction and variation LED ring
Heading Display	digital LED (with gyro data input)
True Wind Direction	digital LED (with gyro data input)
Max Wind Speed	digital LED display
Brightness Adjustment	6 levels adjustable
Brown-Out Alarm	alarm with inner buzzer
Data Output	NMEA0183 wind speed and direction
NMEA Interface	RS422 output 2pin NMEA A/B
Direction Accuracy	±1°
Direction Range	0-359°
Speed Accuracy	0.1m/s
Speed Range	0-60m/s
Start Wind Speed	≦1.2m/s
Power Supply	DC 20-32V 5W
Operation Temperature	-15-+55℃
Storage Temperature	-20-+70℃
Humidity	Relative 10-90%
Sensor	Operation Temperature: -15-+85℃
	Storage Temperature: -20-+85℃
	Protection: IP56

Marine Anemometer

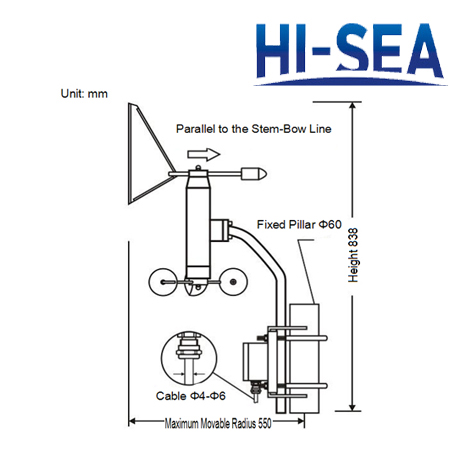

Installation Diagram
