7-Inch TFT Dual-Frequency Fish Finder

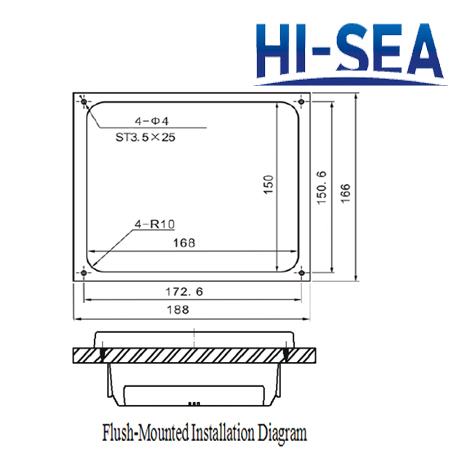

7-Inch TFT Dual-Frequency Fish Finder has the advantages of high power, high sensitivity, and low noise. The most distinct feature of this fish finder is that it has extraordinarily strong anti-interference capability. It can effectively eliminate the interference from neighboring ships. Besides, It equips high sensitive transducer which has the maximum power in 6-inch/7-inch fish finders. This fish finder is easy to install, and there are two installation methods: flush-mounted installation, hanging-mount installation.
Features
▪ Strong anti-interference capability
▪ Dual-frequency
▪ 7¡¯¡¯ liquid crystal display
▪ To equip high sensitive transducer
▪ High power
Specifications
Project |
Data |
Display |
7¡¯¡¯ TFT/ 480¡Á234 pixels |
Frequency |
50KHz, 200KHz, 50/200KHz |
Basic Range |
1.6~400m |
Auto Range |
Yes |
TX Power |
600W |
Echo Intensity |
8 colors/ 12 colors |
Alarm |
Shallow water alarm, fish alarm |
Alarm Mode |
flushing, buzzer |
Zoom Mode |
bottom-lock zoom, layer zoom |
Waterproof |
IP52 |
Overall Dimension |
L188¡Á W65 ¡Á H166mm |
Power Supply |
DC 11~40V |
