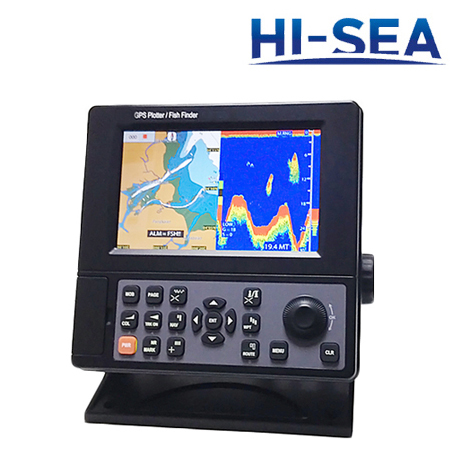

7-Inch LCD Chartplotter and Fish Finder Combo

7-Inch LCD Chartplotter and Fish Finder Combo

7-Inch LCD Chartplotter and Fish Finder Combo is designed for vessels which demand high performance, simple operation and feature integration. It equips WVGA LCD with backlight, dual-frequency 50/200Hz probe, internal high precision GPS. This product supports the display of dual-screen, digital interface, satellite data and 3D projection. This product is available in the following languages: English, Chinese Simplified, Chinese Traditional, Vietnamese, Malaysian, Turkish, Thai, Greek, Indonesian, Japanese.

Features

▪ 7’’ WVGA LCD

▪ high precision internal GPS

▪ internal AIS receiver

▪ Preloaded insight maps

▪ ease of operation

▪ handy features

Specifications

Project	Data
Display Size	7’’ WVGA LCD
Display Mode	dual-screen, digital interface, satellite data display, 3D projection display, full screen chart display
Resolution	800×480
Transmitting Frequency	50 kHz /200 kHz
Probe	dual frequency 50 /200 kHz
Probe Emission Angle	50 kHz @45°, 200 kHz @11°
Position Format	Lat/Lon (dd mm.mmm)
Waypoints	10,000 (8 symbols, 8 colors)
Tracks	262,144 (200 track lines)
Routes	200, 48 waypoints each
Map Scale	0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 25, 50, 100, 200 sea mile
Alarms	dragging, arrival, off-course, CPA, TCPA, AIS, overspeed
Operation Temperature	0℃- +40℃
Input Power	DC 11-36V, 6W( MAX 10W)

7-Inch LCD Chartplotter and Fish Finder Combo

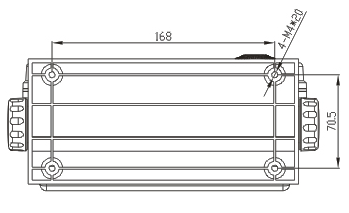

Outline Dimension
