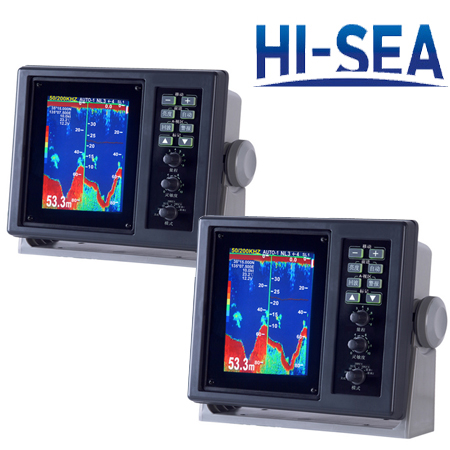

5.6-Inch Depth Sounder And Fish Finder Combo

5.6-Inch Depth Sounder And Fish Finder Combo

5.6-Inch Depth Sounder And Fish Finder Combo gives you better definition of images for the clearest possible picture of what lies below. It is ideal for fresh water and seawater operation. Its compact, lightweight structure is uncompromising in hostile environment. This product will be an excellent helper for you. Don’t wait, please contact us right now.

Features

▪ 5.6-inch TFT LCD with 8-color presentation

▪ Dual-frequency: 50KHz and 200KHz

▪ Various alarm types

▪ Auto mode for hand-off operation

Specifications

Project	Data
Display	5.6’’ LCD
Echo Intensity	8 colors
Background Color	blue, light blue, white, black (selectable)
Basic Range	Meters: 5/10/20/40/80/150/300/600 Feet: 15/30/60/120/200/400/1000/2000 Fathoms: 3/5/10/20/40/80/150/300 Passi/Braza: 3/5/10/30/50/100/150/200
Range Shift	up to 300m (1000feet, 150 fathoms, 200 P/B)
Zoom Range	Times 2, 3, 4, 5 ranges
Bottom Lock Expansion Range	5/10meters, 10/20feet, 2/5fathoms, 2/5passi/braza
Auto Mode	automatic adjustment of range and gain
Zoom Display	marker zoom, bottom zoom, bottom-lock expansion
TX Frequency	50KHz, 200KHz
Output Power	300W
Interference Rejecter	rejects unwanted echo signals
Alarm	fish/bottom/ temperature alarms
Input/Output Data	NMEA0183 (input: RMC,VTG; output: SDDBT, SDDPT)
Transducer	Japan NEC/TOKIN
Power Supply	DC 12~24V
Working Environment	Temperature: 0~50℃ Relative Humidity: 85% at 40℃ Vibration: ±1mm ±10%, 2(5) to 13,3Hz
Maximum Acceleration	7m/s, 13.2Hz to 100Hz
