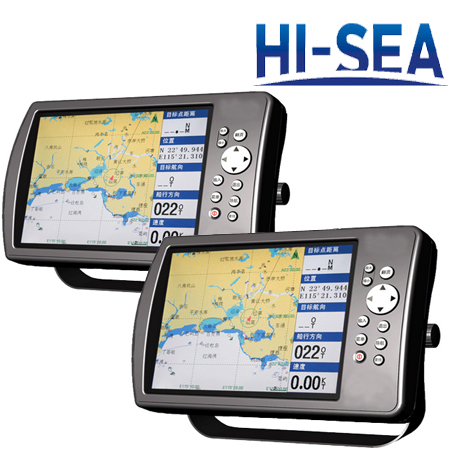

8-Inch Marine HD Color GPS Navigator

8-Inch Marine HD Color GPS Navigator

8-Inch Marine HD Color GPS Navigator equips a GPS receiver, which not only receive 16 channels signals simultaneously, but receive differential signals. The needed time of positioning is quite short. The high definition LCD makes you read clearer. It has accurate maps which could be upgraded via USB interface. This product has large-capacity memory which not only can save tracks, but calculate these tracks to make an efficient return voyage. It is an excellent helper for your voyage.

Features

▪ HD color LCD with backlight suitable for night operation

▪ New nautical map

▪ Waterproof

▪ 260MHZ high-speed processor

▪ Resistant to adverse environment

Specifications

Project	Data
Display Size	8’’ (162×121.5mm) LCD
Resolution	800×600
External Dimension	262×172×65 mm
Antenna	8m marine antenna
Interface	NMEA0183,USB Interface,AIS interface
Temperature	Working Temperature: -30℃-+65℃ Hidden Temperature: -35℃-+75℃
Power Supply	DC 10V-38V, 4W
GPS Receiver	16 Channels GPS
Accuracy	7m (CEP)
Positioning Time	Hot Start: 15s; cold start: 45s
Positioning Update Data-Rate	1 time/second
Waypoints	18,000 points
Routes	50 lines
Base Map	nautical chart (the base map can be upgrade through USB)
