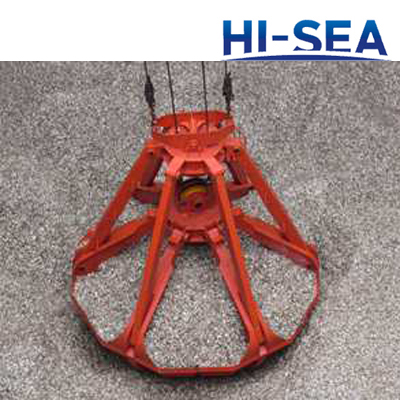

4-Rope Orange Peel Grab

4-Rope Orange Peel Grab

The 4-rope orange peel grab is efficient tool could replace manpower for loading and unloading lump cargo, such as pig iron, ore, clinker, under any severe circumstance. It is equipped to four ropes crane (two holding ropes, two closing ropes) for loading some cargos that is difficult to load, such as stone, pig iron, garbage and wood chip with relative big size cargo.

Product Details:

1. Four ropes and sheaves

2. Low dead weight
3. Convenient operation

4. Suit four hoisting drums crane

5. Assembly and commissioning by SHYP's specialist technicians;
6. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Rated Capacity(T)

Volume(m³)

Dead Weight(T)

Wire Rope Dia.(mm)

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

5

3

3.2

16-18

2800

3500

2700

2700

3200

10

6

5.7

22-24

3500

4700

3500

3500

4700

16

10

8

28

3700

5000

3800

3800

4700

25

5.6

11

32

3650

4650

4000

4000

4900

32

6

14.5

36-40

3820

5000

4200

4200

5200

40

8

17

40-44

4200

5520

4650

4650

5800

4-Rope Orange Peel Grab

Sketch of 4-rope orange peel grab

4-Rope Orange Peel Grab

4-rope Orange Peel Grab
