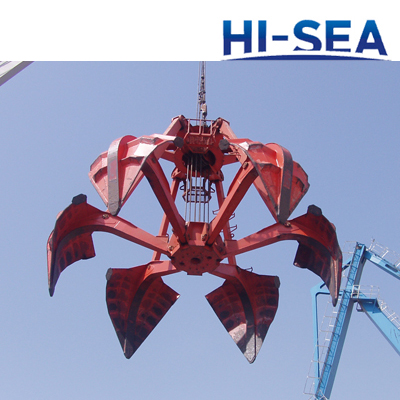

Lightweight Orange Peel Grab
Lightweight orange peel grab is applicable to dual/quad cable crane in the work situations such as port, yard and timber processing plants. It is an efficient tool to handle bulk material like wood chips. And it has advantages of simple structure and easy to operate.
Product Details:
1. Rated capacity: 16-32 ton
2. Grab volume: 15-28.8 m³
3. Dead weight: 9-19 ton
4. Low dead weight
5. Convenient operation
6. Suit four hoisting drums crane
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity | Volume | Dead Weight | Wire Rope Dia. | A | B | C | D |
T | m³ | T | mm | mm | mm | mm | mm |
16 | 15 | 9 | 28 | 3967 | 6047 | 4481 | 4962 |
22 | 25 | 13 | 30 | 4745 | 7196 | 5392 | 5964 |
25 | 26.3 | 14.7 | 32 | 5000 | 7350 | 5632 | 6253 |
32 | 28.8 | 19 | 36 | 5800 | 8849 | 6632 | 7335 |

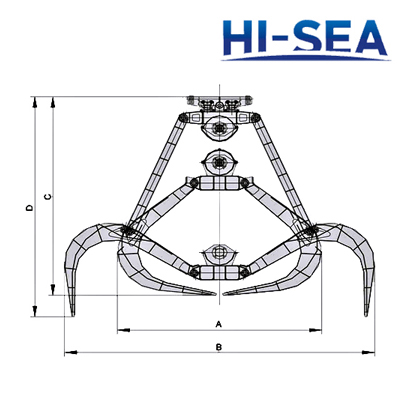

Sketch of the lightweight orange peel grab
