LeakProof Grab
Leakproof Grab is a kind of important tool, which is widely used in port and store yard for loading and unloading cargo that is easy to leak. According to difference of cargo, it can be devided into rest-bar type and saw-tooth type. The rest-bar type grab is mainly used for light cargo, such as grain, fertilizer, surphur, etc; while the saw-tooth type grab is for heavy cargo, such as iron power, cooper power and so on.
Product Details:
1. Convenient operation
2. Long Service Life
3. High tensile steel used throughout.
4. Rated weight: 5-40 ton
5. Application: marine field
6. Grab weight: 2.8-21.6 ton
Specification:
Rated Capacity |
Volume |
Wire Rope Dia. |
Dead Weight |
A |
B |
C |
D |
T |
m³ |
mm |
T |
m |
m |
m |
m |
5 |
3 |
26 |
2.8 |
2.2 |
2.8 |
3 |
2.4 |
10 |
6.5 |
28 |
4.1 |
2.4 |
3.2 |
3.52 |
2.6 |
16 |
9.6 |
28 |
6.4 |
3.04 |
3.4 |
4.07 |
3.06 |
25 |
15 |
32.5 |
9.9 |
3.5 |
4.5 |
4.9 |
3.6 |
30 |
20 |
32.5 |
16 |
4.5 |
6.2 |
7 |
5.5 |
40 |
26 |
38 |
21.6 |
5 |
6.8 |
8 |
6 |

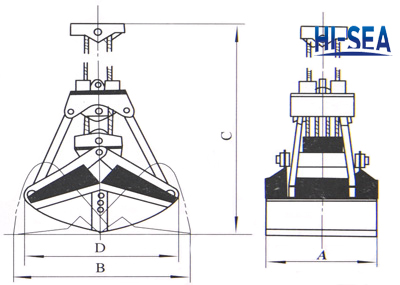

Sketch of the leakproof grab

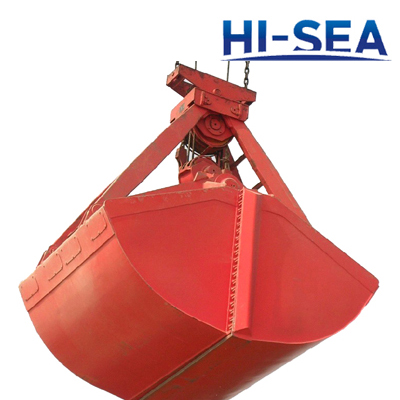

Leakproof Grab
