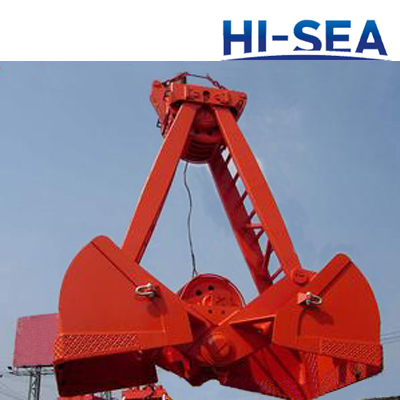

Two Ropes Mechanical Grab
Two Ropes mechanical grab is a kind of efficient tool used in port and store yard for loading and unloading cargo. It can be used in single hook crane and ship deck cranes. The grab is widely used in ship, port, railway station, factory, mine and other transport departments. Suitable for all kinds of bulk cargos like grain, fertilizers, cement, coal, barley, wheat, iron ore, sun flower seed, corn, maize, clay and etc.
Product Details:
1. Rated Capacity: 3-16 ton
2. Volume: 1.2-10 m³
3. Dead Weight: 1.4-6 ton
4. Maximum capacity.
5. Low empty weight.
6. Low cost of maintenance.
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity | Volume | Dead Weight | Wire Rope Dia. | A | B | C | D | E |
T | m³ | T | mm | mm | mm | mm | mm | mm |
3 | 1.2 | 1.4 | 17.5 | 1900 | 2537 | 2488 | 2841 | 1200 |
3 | 1.6 | 1.4 | 17.5 | 2100 | 2631 | 2559 | 3040 | 1300 |
5 | 1.5 | 2 | 19.5 | 2100 | 2549 | 2562 | 3030 | 1260 |
5 | 2 | 2 | 19.5 | 2100 | 2778 | 2818 | 3248 | 1400 |
5 | 2.5 | 2 | 19.5 | 2100 | 2787 | 2715 | 3091 | 1600 |
5 | 3 | 2 | 19.5 | 2300 | 3141 | 2915 | 3337 | 1650 |
8 | 2.6 | 2.6 | 26 | 2300 | 3038 | 3257 | 3736 | 1800 |
8 | 3 | 3.3 | 26 | 2380 | 3118 | 3287 | 3786 | 1900 |
8 | 3.8 | 3.5 | 26 | 2550 | 3536 | 3286 | 3733 | 2000 |
8 | 4.5 | 3.8 | 26 | 2500 | 3505 | 3503 | 3975 | 2300 |
10 | 3 | 4 | 28 | 2380 | 3118 | 3287 | 3786 | 1900 |
10 | 5 | 4 | 28 | 2580 | 3605 | 3503 | 3975 | 2400 |
10 | 6 | 4 | 28 | 2700 | 3714 | 3733 | 4265 | 2500 |
16 | 3.6 | 6 | 32 | 2500 | 3313 | 3810 | 4206 | 2100 |
16 | 4 | 6 | 32 | 2500 | 3313 | 3810 | 4206 | 2200 |
16 | 6 | 6 | 32 | 2900 | 3800 | 4249 | 4612 | 2400 |
16 | 10 | 6 | 32 | 3200 | 4000 | 3938 | 4673 | 2500 |

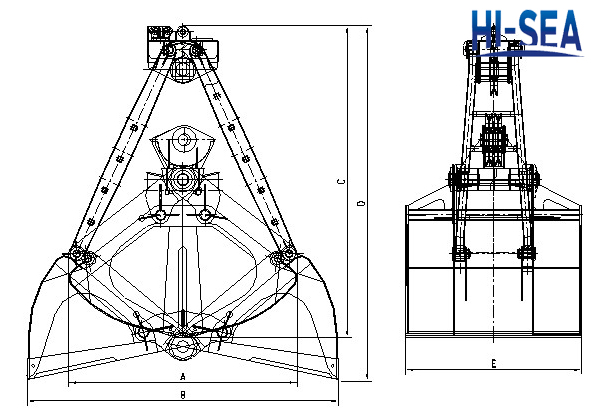

Sketch of the two ropes mechanical grab
Two Ropes Mechanical Grab
